ELM0.075,ELM0.16,ELM0.32,ELM0.5,ELM0.050,ELM0.75,ELM0.075,ELM0.75-350/00/CF,

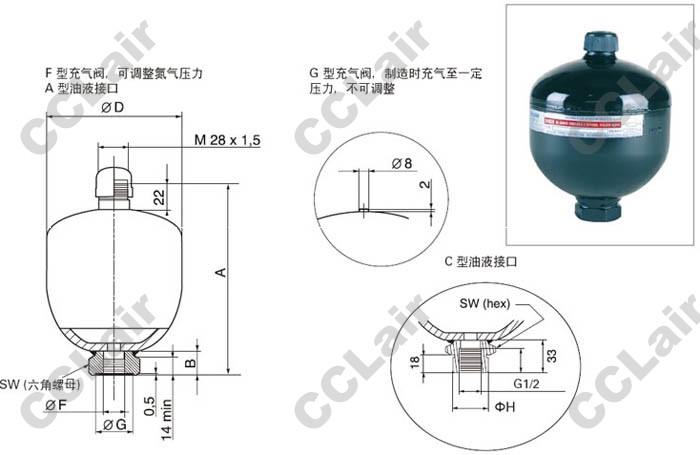

隔膜式蓄能器
ELM0.075-250/00/AF,ELM0.16-250/00/AF,ELM0.32-210/00/AF,ELM0.5-210/00/AF,
ELM0.050-210/00/CF,ELM0.75-160/00/CF,ELM0.75-210/00/AF,ELM0.075-210/00/CF,ELM0.75-350/00/AF,
|
订货代号
|
ELM0.075-250/00/AF |
ELM0.16-250/00/AF |
ELM0.32-210/00/AF |
ELM0.5-210/00/AF |
ELM0.050-210/00/CF |
ELM0.75-160/00/CF* |
ELM0.75-210/00/AF |
ELM0.075-210/00/CF |
ELM0.75-350/00/AF |
ELM0.75-350/00/CF |
|
接口形式
|
AF |
AF |
AF |
AF |
CF |
CF |
AF |
CF |
AF |
CF |
|
容积V0/L
|
0.075 |
0.16 |
0.32 |
0.50 |
0.50 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
最高工作压力/bar
|
250 |
250 |
210 |
210 |
210 |
160 |
210 |
210 |
350 |
350 |
|
最高预充压力/bar
|
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
|
最大压缩比P2/P0
|
8 |
6 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
最大压力变化值/bar
|
210 |
210 |
140 |
175 |
175 |
120 |
175 |
175 |
150 |
150 |
|
重量/kg
|
0.7 |
1 |
1.4 |
2 |
2 |
2.6 |
2.6 |
2.6 |
4.4 |
4.5 |
|
A
|
111 |
120 |
134 |
152 |
163 |
176 |
166 |
177 |
168 |
189 |
|
B
|
20 |
20 |
20 |
22 |
33 |
33 |
22 |
33 |
18 |
18 |
|
SW
|
32 |
32 |
32 |
41 |
41 |
41 |
41 |
41 |
41 |
41 |
|
D
|
64 |
75 |
93 |
106 |
106 |
121 |
122 |
122 |
133 |
133 |
|
G
|
29 |
29 |
29 |
34 |
- |
- |
34 |
- |
34 |
- |
|
|
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
|
-
|
-
|
-
|
-
|
M33*1.5
|
-
|
-
|
M33*1.5
|
-
|
M33*1.5
|
|
卡箍型号
|
- |
- |
E95 |
E106 |
E106 |
E124 |
E124 |
E124 |
E136 |
E136 |
|
锁紧螺母型号
|
- |
- |
- |
- |
M33 |
- |
- |
M33 |
- |
M33 |
