WXQ672F-16-DN10,WXQ672F-16-DN15,WXQ672F-16-DN20,气动线性调节球阀
WXQ672F-16-DN25,WXQ672F-16-DN32,WXQ672F-16-DN40,WXQ672F-16-DN50,WXQ672F-16-DN65,
WXQ672F-16-DN80,WXQ672F-16-DN100,WXQ672F-16-DN125,WXQ672F-16-DN150,WXQ672F-16-DN200,

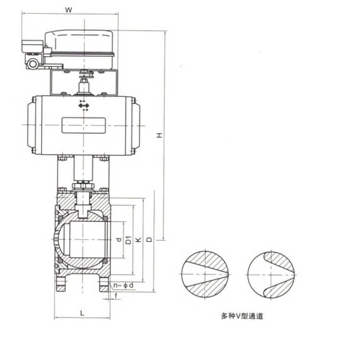

WXQ672F（PPL、M）-16结构示意图
主要外形和连接尺寸 单位Unit:（mm）
| 通径DN |
d |
L |
D |
K |
D1 |
n-Φd |
F |
H |
W |
| mm |
in |
| 10 |
3/8″ |
10 |
32 |
85 |
60 |
38 |
4-M12 |
2 |
310 |
105 |
| 15 |
1/2″ |
14 |
35 |
90 |
65 |
46 |
4-M12 |
2 |
315 |
140 |
| 20 |
3/4″ |
19 |
38 |
100 |
75 |
56 |
4-M12 |
2 |
325 |
140 |
| 25 |
1″ |
24 |
42 |
110 |
85 |
65 |
4-M12 |
2 |
330 |
140 |
| 32 |
1 1/4″ |
29 |
50 |
130 |
100 |
76 |
4-M16 |
3 |
365 |
16 |
| 40 |
1 1/2″ |
38 |
60 |
145 |
110 |
84 |
4-M16 |
3 |
375 |
164 |
| 50 |
2″ |
48 |
70 |
160 |
125 |
99 |
4-M16 |
3 |
398 |
190 |
| 65 |
2 1/2″ |
64 |
95 |
180 |
145 |
118 |
4-M16 |
3 |
408 |
210 |
| 80 |
3″ |
76 |
118 |
195 |
160 |
132 |
8-M16 |
3 |
450 |
247 |
| 100 |
4″ |
95 |
140 |
215 |
180 |
156 |
8-M16 |
3 |
465 |
278 |
| 125 |
5″ |
118 |
195 |
245 |
210 |
184 |
8-M16 |
3 |
525 |
348 |
| 150 |
6″ |
150 |
260 |
280 |
240 |
211 |
8-M20 |
3 |
578 |
378 |
| 200 |
8″ |
200 |
350 |
335 |
295 |
266 |
12-M20 |
3 |
650 |
432 |
