电磁阀
HTZS2DF02E1AC3,HTZS2DF02E1C16,HTZS2DF02V1H32,HTZS2DF02N1F40,零压差电磁阀
2015-12-31 21:54676
信息概况
-
价格：未填
-
型号：HTZS2DF02E1AC3,HTZS2DF02E1C16,HTZS2DF02V1H32,HTZS2DF02N1F40,零压差电磁阀
-
发货：3天内
HTZS2DF02E1AC3,HTZS2DF02E1C16,HTZS2DF02V1H32,HTZS2DF02N1F40,零压差电磁阀
HTZS2DF02V1AC3,HTZS2DF02N1AC3,HTZS2DF02E1AC3,
HTZS2DF02V1AC3,HTZS2DF02N1B04,HTZS2DF02E1B04,HTZS2DF02V1B04,
HTZS2DF02N1C16,HTZS2DF02V1C16,HTZS2DF02N1C16,HTZS2DF02E1C16,
HTZS2DF02V1C16,HTZS2DF02N1E20,HTZS2DF02E1E20,HTZS2DF02V1E20,
HTZS2DF02N1G25,HTZS2DF02E1G25,HTZS2DF02V1G25,HTZS2DF02N1H32,
HTZS2DF02E1H32,HTZS2DF02N1H32,cclair,HTZS2DF02E1H32,HTZS2DF02V1H32,
HTZS2DF02N1J40,HTZS2DF02E1J40,HTZS2DF02V1J40,HTZS2DF02N1J40,
HTZS2DF02E1J40,HTZS2DF02V1J40,HTZS2DF02N1K50,HTZS2DF02E1K50,
HTZS2DF02V1K50,HTZS2DF02N1K50,HTZS2DF02E1K50,HTZS2DF02V1K50,
HTZS2DF02N1F25,HTZS2DF02E1F25,HTZS2DF02V1F25,HTZS2DF02N1F32,
HTZS2DF02E1F32,HTZS2DF02V1F32,HTZS2DF02E1F40,HTZS2DF02V1F40,
HTZS2DF02N1F50,HTZS2DF02E1F50,HTZS2DF02V1F50,HTZS2DF02N1AC3,
二位二通常型电磁阀,断电打开,通电关闭阀体材质为铜,和SS304不锈钢(常规),SS316不锈钢(定制)最大耐压力10cm2环境温度0℃～65℃产品系列化生产,体积小,流量大,适用范围广按阀上所表流向箭头,可任意安装;为增强使用寿命,最好线圈向上,水平安装
电压：AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允许波动
膜片、密封件，可采用NBR、VITON、EPDM等多种，以适用不同流体的开关控制。
型号规格：
|
接管口径
|
流量通径mm
|
CV值
|
压力差（kgf/cm2）
|
最大流体温度
|
线圈
|
功率
|

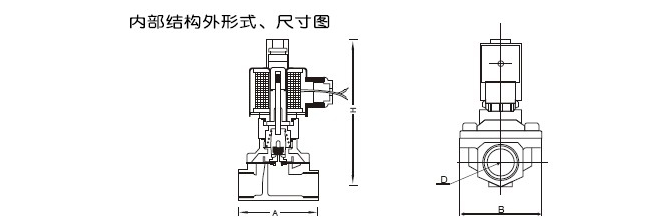

外形尺寸 长X宽X高 A x B x H |
重量KG
|
订货型号以下表中电压为220CAC 50/60HZ
|
|||||||
|
最小 压力 |
最大工作压力
|
|||||||||||||||
|
空气瓦斯
|
水热水液体
|
轻油≤20CST
|
F级
|
VA
|
W
|
|||||||||||
|
AC
|
DC
|
AC
|
DC
|
AC
|
DC
|
配置
|
AC220V
|
DC24V
|
||||||||
| 1/8'' | 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 80 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02N1AC3 |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02E1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02V1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 80 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02N1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02E1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41x29x83 | 0.37 | HTZS2DF02V1AC3 | |
| 1/4'' | 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 80 | D | 57.2 | 32 | 52.5x32.5x115 | 0.7 | HTZS2DF02N1B04 |
| 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 52.5x32.5x115 | 0.7 | HTZS2DF02E1B04 | |
| 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 52.5x32.5x115 | 0.7 | HTZS2DF02V1B04 | |
| 3/8'' | 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 80 | D | 57.2 | 32 | 69x57x135 | 1.2 | HTZS2DF02N1C16 |
| 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.2 | HTZS2DF02E1C16 | |
| 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.2 | HTZS2DF02V1C16 | |
| 1/2'' | 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 69x57x135 | 1.15 | HTZS2DF02N1C16 |
| 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.15 | HTZS2DF02E1C16 | |
| 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.15 | HTZS2DF02V1C16 | |
| 3/4'' | 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 69x57x135 | 1.25 | HTZS2DF02N1E20 |
| 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.25 | HTZS2DF02E1E20 | |
| 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69x57x135 | 1.25 | HTZS2DF02V1E20 | |
| 1'' | 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 99x77.5x50 | 1.7 | HTZS2DF02N1G25 |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 99x77.5x150 | 1.7 | HTZS2DF02E1G25 | |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 99x77.5x150 | 1.7 | HTZS2DF02V1G25 | |
| 11/4'' | 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 112x86.5x180 | 2.75 | HTZS2DF02N1H32 |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 112x86.5x180 | 2.75 | HTZS2DF02E1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 112x86.5x180 | 2.75 | HTZS2DF02V1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123x94x190 | 3.7 | HTZS2DF02N1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.7 | HTZS2DF02E1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.7 | HTZS2DF02V1H32 | |
| 11/2'' | 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123x94x190 | 3.15 | HTZS2DF02N1J40 |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.15 | HTZS2DF02E1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.15 | HTZS2DF02V1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123x94x190 | 3.55 | HTZS2DF02N1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.55 | HTZS2DF02E1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123x94x190 | 3.55 | HTZS2DF02V1J40 | |
| 2'' | 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 168x123x216 | 5.4 | HTZS2DF02N1K50 |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168x123x16 | 5.4 | HTZS2DF02E1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168x123x216 | 5.4 | HTZS2DF02V1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 168x123x216 | 5.6 | HTZS2DF02N1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168x123x216 | 5.6 | HTZS2DF02E1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168x123x216 | 5.6 | HTZS2DF02V1K50 | |
| 法
兰 4 孔 连 接 |
25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 140x115x160 | 3.05 | HTZS2DF02N1F25 |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 140x115x160 | 3.05 | HTZS2DF02E1F25 | |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 140x115x160 | 3.05 | HTZS2DF02V1F25 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 152x135x235 | 5.4 | HTZS2DF02N1F32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152x135x235 | 5.4 | HTZS2DF02E1F32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152x135x235 | 5.4 | HTZS2DF02V1F32 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 152x145x240 | 6.4 | HTZS2DF02N1F40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152x145x240 | 6.4 | HTZS2DF02E1F40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152x145x240 | 6.4 | HTZS2DF02V1F40 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 195x160x270 | 8.6 | HTZS2DF02N1F50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 195x160x270 | 8.6 | HTZS2DF02E1F50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 195x160x270 | 8.6 | HTZS2DF02V1F50 | |
| 线圈型式和编号 | 电压 |
功率
|
所配电磁阀流量孔径(mm) |
|||||
| 50HZVA | 60HZVA | 直流 | ||||||
| 起动 | 保持 | 起动 | 保持 | W | 常闭型 | 常开型 | ||
| N05-2101 | AC220V | 32 | 13 | 32 | 12 | φ2.5 | ||
| N05-2102 | AC110V | 32 | 13 | 32 | 12 | φ3.0 | ||
| N05-2103 | DC24V | -------------------------- | 8.5 | ------ | ||||
| N05-2104 | DC12V | 8.5 | ||||||
| D01-4101 | AC220V | 82 | 33 | 82 | 28 |
φ4～φ25
|
||
| N01-4101 | φ4～φ25 | |||||||
| D03-5106 | AC220V | 143 | 57 | 143 | 46 |
φ4～φ25
|
||
| A01-4101 | AC220V | 70 | 28 | 70 | 23 | φ4～φ25 |
φ4～φ25
|
|
| D01-4102 | AC110V | 82 | 33 | 82 | 28 | |||
| N01-4102 | AC110V | 82 | 33 | 82 | 28 | |||
| A01-4102 | AC110V | 70 | 28 | 70 | 23 | |||
| D03-5101 | DC24V | -------------------------- | 32 |
φ4～φ25
|
||||
| N03-5101 | ||||||||
| A03-5101 | DC24V | 25 | ||||||
| D03-5102 | DC12V | 28.5 | ||||||
| D10-6101 | AC220V | 175 | 70 | 175 | 56 |
φ32～φ50
|
||
| N10-6101 | ||||||||
| A10-6101 | AC220V | 110 | 44 | 10 | 36 | |||
| D10-6101 | AC110V | 110 | 45 | 110 | 36 | |||
| N10-6102 | ||||||||
| A10-6102 | AC110V | 110 | 44 | 110 | 36 | |||
| D10-6104 | DC24V | -------------------------- | 40 | |||||
| N10-6104 | ||||||||
| A10-6104 | DC24V | 49 | ||||||
HTZS2DF02V1AC3,HTZS2DF02N1B04,HTZS2DF02E1B04,HTZS2DF02V1B04,
HTZS2DF02N1C16,HTZS2DF02V1C16,HTZS2DF02N1C16,HTZS2DF02E1C16,
HTZS2DF02V1C16,HTZS2DF02N1E20,HTZS2DF02E1E20,HTZS2DF02V1E20,
HTZS2DF02N1G25,HTZS2DF02E1G25,HTZS2DF02V1G25,HTZS2DF02N1H32,
HTZS2DF02E1H32,HTZS2DF02N1H32,cclair,HTZS2DF02E1H32,HTZS2DF02V1H32,
HTZS2DF02N1J40,HTZS2DF02E1J40,HTZS2DF02V1J40,HTZS2DF02N1J40,
HTZS2DF02E1J40,HTZS2DF02V1J40,HTZS2DF02N1K50,HTZS2DF02E1K50,
HTZS2DF02V1K50,HTZS2DF02N1K50,HTZS2DF02E1K50,HTZS2DF02V1K50,
HTZS2DF02N1F25,HTZS2DF02E1F25,HTZS2DF02V1F25,HTZS2DF02N1F32,
HTZS2DF02E1F32,HTZS2DF02V1F32,HTZS2DF02E1F40,HTZS2DF02V1F40,
HTZS2DF02N1F50,HTZS2DF02E1F50,HTZS2DF02V1F50,HTZS2DF02N1AC3,
