HTP2DF02N1B03,HTP2DF02V1D13,HTP2DF02V1E20,HTP2DF02E1J40,先导式电磁阀

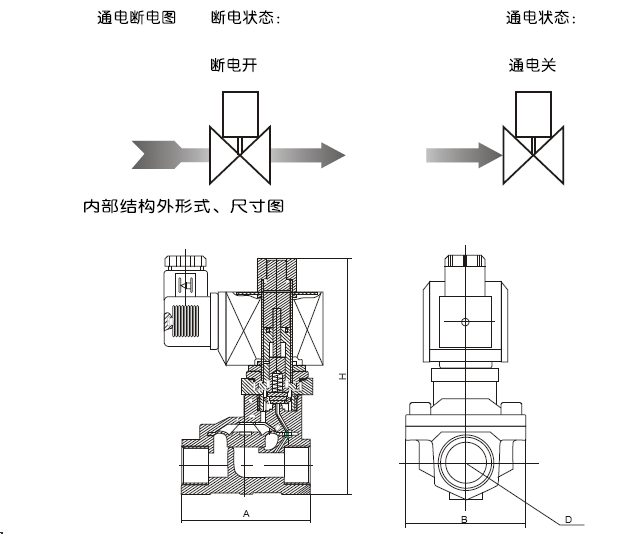

二位二通常型电磁阀,断电打开,通电关闭阀体材质为铜,最大耐压:12kgf/cm2环境温度:0℃～65℃产品系列化生产,体积小,流量大,适用范围广按阀上所表流向箭头,可任意安装;为增强使用寿命,最好线圈向上,水平安装
电压：AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允许波动
膜片、密封件，可采用NBR、VITON、EPDM等多种，以适用不同流体的开关控制。
型号规格：
接管
口径 |
流量
通径
mm |
CV值 |
最小
压力
|
线圈
配置 |
功率 |
线圈
等级 |
外形尺寸
长X宽X高
A x B x H
|
重量
KG |
订货型号以下
表中电压为
220CAC 50/60HZ
|
|
VA
|
W
|
|
AC220V
|
DC24V
|
| 1/8'' |
3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.37 |
HTP2DF02N1A03 |
| 3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.37 |
HTP2DF02E1A03 |
| 3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.37 |
HTP2DF02V1A03 |
| 1/4'' |
3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.36 |
HTP2DF02N1B03 |
| 3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.36 |
HTP2DF02E1B03 |
| 3 |
0.23 |
0 |
D |
22 |
13 |
F |
41x29x83 |
0.36 |
HTP2DF02V1B03 |
| 3/8'' |
13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.36 |
HTP2DF02N1C13 |
| 13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.36 |
HTP2DF02E1C13 |
| 13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.36 |
HTP2DF02V1C13 |
| 1/2'' |
13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.9 |
HTP2DF02N1D13 |
| 13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.9 |
HTP2DF02E1D13 |
| 13 |
4.5 |
0.5 |
D |
33 |
32 |
F |
66x48x124 |
0.9 |
HTP2DF02V1D13 |
| 3/4'' |
20 |
7.6 |
0.5 |
D |
33 |
32 |
F |
75x58x130 |
1.1 |
HTP2DF02N1E20 |
| 20 |
7.6 |
0.5 |
D |
33 |
32 |
F |
75x58x130 |
1.1 |
HTP2DF02E1E20 |
| 20 |
7.6 |
0.5 |
D |
33 |
32 |
F |
75x58x130 |
1.1 |
HTP2DF02V1E20 |
| 1'' |
25 |
12 |
0.5 |
D |
33 |
32 |
F |
96x70x143 |
1.6 |
HTP2DF02N1G25 |
| 25 |
12 |
0.5 |
D |
33 |
32 |
F |
96x70x143 |
1.6 |
HTP2DF02E1G25 |
| 25 |
12 |
0.5 |
D |
33 |
32 |
F |
96x70x143 |
1.6 |
HTP2DF02V1G25 |
| 11/4'' |
35 |
22 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
3 |
HTP2DF02N1H35 |
| 35 |
22 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
3 |
HTP2DF02E1H35 |
| 35 |
22 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
3 |
HTP2DF02V1H35 |
| 11/2'' |
40 |
30 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
2.8 |
HTP2DF02N1J40 |
| 40 |
30 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
2.8 |
HTP2DF02E1J40 |
| 40 |
30 |
0.5 |
D |
33 |
32 |
F |
131x96x158 |
2.8 |
HTP2DF02V1J40 |
| 2'' |
50 |
48 |
0.5 |
D |
33 |
32 |
F |
165x120x179 |
5 |
HTP2DF02N1K50 |
| 50 |
48 |
0.5 |
D |
33 |
32 |
F |
165x120x179 |
5 |
HTP2DF02E1K50 |
| 50 |
48 |
0.5 |
D |
33 |
32 |
F |
165x120x179 |
5 |
HTP2DF02V1K50 |
HTP2DF02N1A03,HTP2DF02E1A03,HTP2DF02V1A03,HTP2DF02E1B03,
HTP2DF02V1B03,HTP2DF02N1C13,HTP2DF02E1C13,HTP2DF02V1C13,
HTP2DF02N1D13,HTP2DF02E1D13,HTP2DF02N1E20,HTP2DF02E1E20,
HTP2DF02N1G25,HTP2DF02E1G25,cclair,HTP2DF02V1G25,HTP2DF02N1H35,
HTP2DF02E1H35,HTP2DF02V1H35,HTP2DF02N1J40,HTP2DF02V1J40,
HTP2DF02N1K50,HTP2DF02E1K50,HTP2DF02V1K50,
