HTA1SH02T1AC3,HTA1DF02E1AC6,HTA1DF02T1D15,HTA1WH02T1G25,二位二通电磁阀

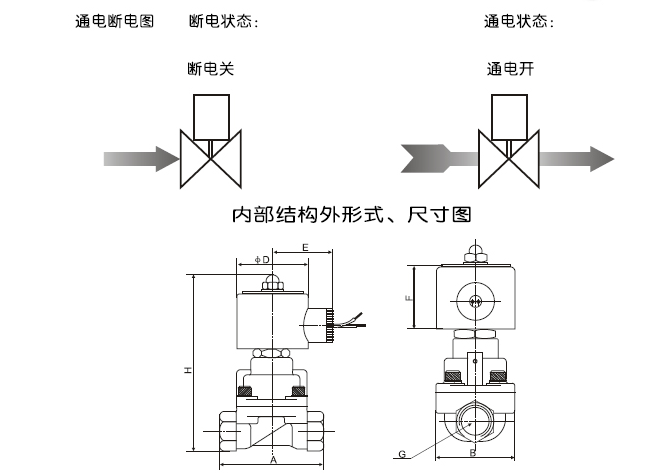

二位二通常闭型电磁阀,断电关闭,通电打开阀体材质为铜
最大耐压力为:40kgf/cm2
环境温度:0℃～65℃(F级)、0℃～80℃(H级)
产品为系列化生产,体积小,流量大,适用范围广
按阀上所标流向箭头,可任意安装;为增强使用寿命,最好线圈向上,水平安装
电压:AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允许波动
线圈可配德国原装NASS线圈
常规备货:AC220V/230V/240V 50/60HZ DC24V
密封件采用聚四氟乙烯材料(Teflon),以适用不同流体的开关控制
|
接管
口径
|
流量
通径
mm
|
CV值
|
线圈
配置
|
功率
|
线圈等级
|
外形尺寸
长X宽X高
A x B x H
|
重量
KG
|
订货型号以下
表中电压为
220CAC 50/60HZ
|
|
VA
|
W
|
|
AC
220V
|
DC
24V
|
| 1/8'' |
2.5 |
0.23 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.45 |
HTA1SH02T1AC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.45 |
HTA1DF02V1AC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.45 |
HTA1DF02E1AC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.45 |
HTA1DF02N1AC3 |
| 4.5 |
0.6 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.55 |
HTA1SH02T1AC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.55 |
HTA1DF02V1AC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.55 |
HTA1DF02E1AC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.55 |
HTA1DF02N1AC6 |
| 1/4'' |
2.5 |
0.23 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.4 |
HTA1SH02T1BC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.4 |
HTA1DF02V1BC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.4 |
HTA1DF02E1BC3 |
| 2.5 |
0.23 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.4 |
HTA1DF02N1BC3 |
| 4.5 |
0.6 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.5 |
HTA1SH02T1BC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.5 |
HTA1DF02V1BC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.5 |
HTA1DF02E1BC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
F |
48x25x85.5 |
0.5 |
HTA1DF02N1BC6 |
| 4.5 |
0.6 |
D
|
22 |
13 |
H |
48x25x85.5 |
0.5 |
HTA1SH02T1BC6 |
| 3/8'' |
15 |
4.5 |
D
|
33 |
32 |
F |
75x52x129 |
1.25 |
HTA1DF02V1C15 |
| 15 |
4.5 |
W
|
30 |
25 |
H |
75x52x129 |
1.25 |
HTA1WH02T1C15 |
| 1/2'' |
15 |
4.5 |
D
|
33 |
32 |
F |
75x52x129 |
1.2 |
HTA1DF02T1D15 |
| 15 |
4.5 |
W
|
30 |
25 |
H |
75x52x129 |
1.2 |
HTA1WH02T1D15 |
| 3/4'' |
20 |
9.0 |
D
|
33 |
32 |
F |
85x60x148 |
1.5 |
HTA1DF02T1E20 |
| 20 |
9.0 |
W
|
30 |
25 |
H |
85x60x148 |
1.5 |
HTA1WH02T1E20 |
| 1'' |
25 |
13 |
D
|
33 |
32 |
F |
100x70x148 |
1.9 |
HTA1DF02T1G25 |
| 25 |
13 |
W
|
30 |
25 |
H |
100x70x148 |
1.9 |
HTA1WH02T1G25 |
| 11/4'' |
35 |
26 |
D
|
33 |
32 |
F |
120x90x168 |
3.6 |
HTA1DF02T1H35 |
| 35 |
26 |
W
|
30 |
25 |
H |
120x90x168 |
3.6 |
HTA1WH02T1H35 |
| 1/2'' |
35 |
26 |
D
|
33 |
32 |
F |
120x90x168 |
3.5 |
HTA1DF02T1J35 |
| 35 |
26 |
W
|
30 |
25 |
H |
120x90x168 |
3.5 |
HTA1WH02T1J35 |
