HTA2DF02V1C15,HTA2DF02V1E20,HTA2WH02V1J35,HTA2DF02V1F40,二位二通电磁阀
二位二通常闭型电磁阀,断电关闭,通电关闭阀体材质为锻铜
最大耐压力为:12fg/cm2
环境温度:0℃～65℃(F级)、0℃～80℃(H级)
产品为系列化生产,体积小,流量大,适用范围广
按阀上所标流向箭头,可任意安装;为增强使用寿命,最好线圈向上,水平安装
电压:AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允许波动
密封件采用聚四氟乙烯材料(Teflon),以适用不同流体的开关控制
型号规格：
|
接管
口径
|
流量
通径
mm
|
CV值
|
线圈
配置
|
功率
|
线圈
等级
|

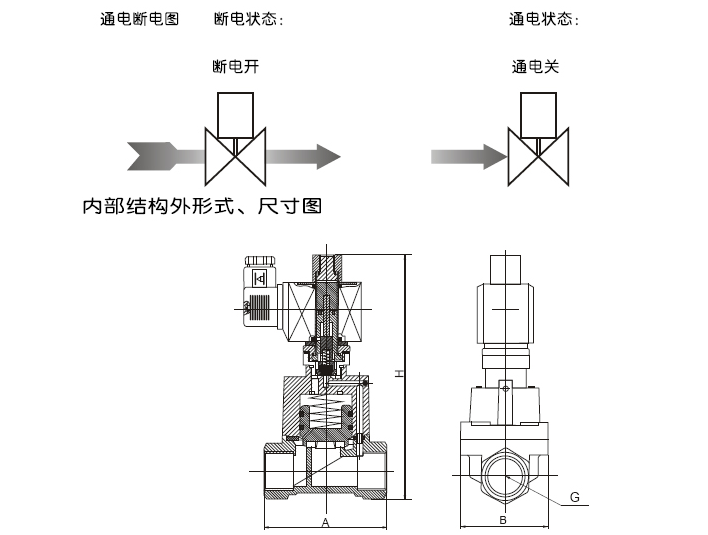

外形尺寸
长×宽×高
A×B×H
|
重量
KG
|
订货型号以下
表中电压为
220CAC 50/60HZ
|
|
VA
|
W
|
|
AC220V
|
DC24V
|
| 3/8'' |
15 |
4.5 |
D |
33 |
32 |
F |
75×52×147 |
1.45 |
HTA2DF02V1C15 |
| 15 |
4.5 |
W |
33 |
32 |
H |
75×52×147 |
1.45 |
HTA2WH02V1C15 |
| 1/2'' |
15 |
4.5 |
D |
33 |
32 |
F |
75×52×147 |
1.4 |
HTA2DF02V1D15 |
| 15 |
4.5 |
W |
33 |
32 |
H |
75×52×147 |
1.4 |
HTA2WH02V1D15 |
| 3/4'' |
20 |
9.0 |
D |
33 |
32 |
F |
85×60×159 |
1.7 |
HTA2DF02V1E20 |
| 20 |
9.0 |
W |
33 |
32 |
H |
85×60×159 |
1.7 |
HTA2WH02V1E20 |
| 1'' |
25 |
13 |
D |
33 |
32 |
F |
100×70×166 |
2.1 |
HTA2DF02V1G25 |
| 25 |
13 |
W |
33 |
32 |
H |
100×70×166 |
2.1 |
HTA2WH02V1G25 |
| 11/4'' |
35 |
26 |
D |
33 |
32 |
F |
120×90×186 |
3.8 |
HTA2DF02V1H35 |
| 35 |
26 |
W |
33 |
32 |
H |
120×90×186 |
3.8 |
HTA2WH02V1H35 |
| 1/2'' |
35 |
26 |
D |
33 |
32 |
F |
120×90×186 |
3.7 |
HTA2DF02V1J35 |
| 35 |
26 |
W |
33 |
32 |
H |
120×90×186 |
3.7 |
HTA2WH02V1J35 |
| 1''法兰连接 |
25 |
13 |
D |
33 |
32 |
F |
134×110×200 |
3.6 |
HTA2DF02V1F25 |
| 25 |
13 |
W |
33 |
32 |
H |
134×110×200 |
3.6 |
HTA2WH02V1F25 |
| 11/4''法兰连接 |
35 |
26 |
D |
33 |
32 |
F |
160×135×215 |
6.2 |
HTA2DF02V1F35 |
| 35 |
26 |
W |
33 |
32 |
H |
160×135×215 |
6.2 |
HTA2WH02V1F35 |
| 1/2''法兰连接 |
35 |
26 |
D |
33 |
32 |
F |
160×135×215 |
6.7 |
HTA2DF02V1F40 |
| 35 |
26 |
W |
33 |
32 |
H |
160×135×215 |
6.7 |
HTA2WH02V1F40 |
