HTE1DF02V1A02,HTE1DF02V1B04,HTE1DF02V1C05,直动式并联电磁阀

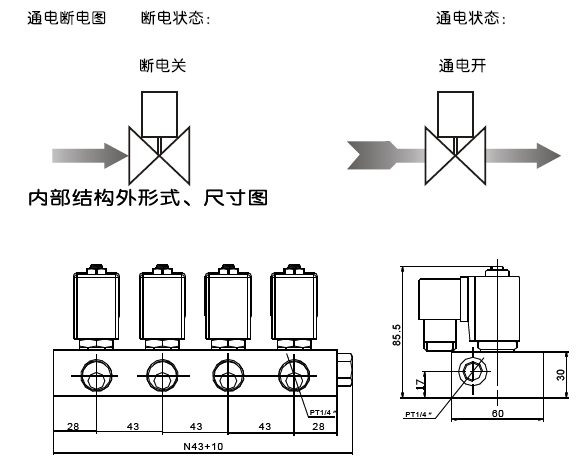

二位二通常闭型电磁阀,断电关闭,通电打开阀体材质为铜,铝(定制)
环境温度:0～65℃按阀上所标流向箭头,一进多路出(N)
电压:AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允许波动
线圈可配德国原装NASS线圈
常规备货:AC220V/230/240V
50/60HZ 22VA 24VA DC24V 13W
型号规格：
|
接管
口径
|
流量
通径
mm
|
CV值
|
线圈
配置
|
功率
|
线圈
等级
|
订货型号以下
表中电压为
220CAC 50/60HZ
|
|
VA
|
W
|
|
AC220V
|
DC24V
|
| 1/8'' |
2.0 |
0.15 |
D |
22 |
13 |
F |
HTE1DF02V1A02 |
| 3.0 |
0.23 |
D |
22 |
13 |
F |
HTE1DF02V1A03 |
| 4.0 |
0.44 |
D |
22 |
13 |
F |
HTE1DF02V1A04 |
| 5.0 |
0.5 |
D |
22 |
13 |
F |
HTE1DF02V1A05 |
| 1/4'' |
2.0 |
0.15 |
D |
22 |
13 |
F |
HTE1DF02V1B02 |
| 3.0 |
0.23 |
D |
22 |
13 |
F |
HTE1DF02V1B03 |
| 4.0 |
0.44 |
D |
22 |
13 |
F |
HTE1DF02V1B04 |
| 5.0 |
0.5 |
D |
22 |
13 |
F |
HTE1DF02V1B05 |
| 6.0 |
0.8 |
D |
22 |
13 |
F |
HTE1DF02V1B06 |
| 3/8'' |
5.0 |
0.5 |
D |
22 |
13 |
F |
HTE1DF02V1C05 |
| 6.0 |
0.8 |
D |
22 |
13 |
F |
HTE1DF02V1C06 |
| 9.0 |
1.65 |
D |
22 |
13 |
F |
HTE1DF02V1C09 |
| 1/2'' |
5.0 |
0.5 |
D |
22 |
13 |
F |
HTE1DF02V1D05 |
| 6.0 |
0.8 |
D |
22 |
13 |
F |
HTE1DF02V1D06 |
| 9.0 |
1.65 |
D |
22 |
13 |
F |
HTE1DF02V1D09 |
HTE系列线圈参数表：
|
线圈型式和编号
|
电压
|
功率
|
所配电磁阀
|
|
50HZ VA
|
60HZ VA
|
直流
|
|
起动
|
保持
|
起动
|
保持
|
W
|
|
D04-3101
|
AC220V
|
55
|
22
|
55
|
22
|
----- |
HTE常闭系列
|
|
D04-3102
|
AC110V
|
55
|
22
|
55
|
22
|
|
D04-3104
|
AC24V
|
45
|
18
|
45
|
18
|
|
D04-3106
|
DC24V
|
----------------------------------------------- |
13
|
|
D04-3107
|
DC12V
|
13
|
HTE1DF02V1A03,HTE1DF02V1A04,HTE1DF02V1A05,HTE1DF02V1B02,
HTE1DF02V1B03,HTE1DF02V1B05,HTE1DF02V1B06,HTE1DF02V1C06,
HTE1DF02V1C09,HTE1DF02V1D05,HTE1DF02V1D06,HTE1DF02V1D09,
