HTG1DF02V1A01,HTG1DF02V3AC2,HTG1DF02T3D08,二位二通电磁阀

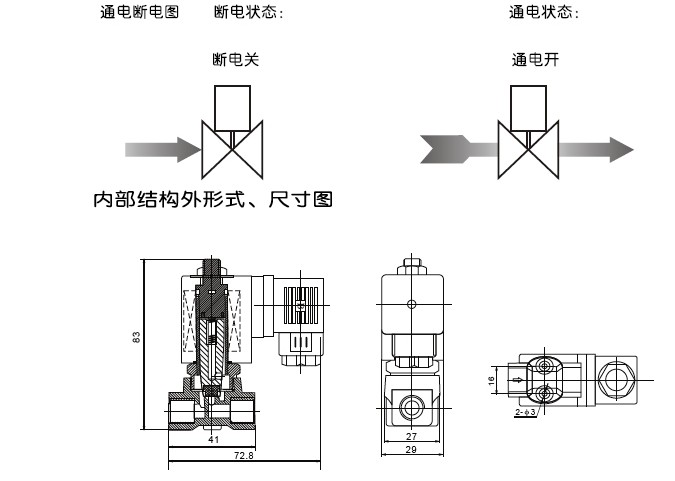

二位二通常闭型电磁阀,断电关闭,通电打开阀体材质为铜,SS316不锈钢,超高压电磁阀
环境温度:0℃～65℃ 按阀上所标流向箭头,可任意安装
电压:AC220V/230V 380V 50/60HZ +10%到-10%允许波动 标准配置D型线圈
线圈可配德国原装NASS线圈
常规备货:AC220V/230V/240V 50/60HZ 22VA DC24V 13W
型号规格：
|
接管
口径
|
流量
通径
mm
|
CV值
|
线圈配置
|
功率
|
外形尺寸
长X宽X高
A x B x H
|
重量
KG
|
订货型号以下
表中电压为
220CAC 50/60HZ
|
|
F级
|
VA
|
W
|
|
配置
|
AC
220V
|
DC
24V
|
| 1/8'' |
1.0 |
0.06 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V1A01 |
| 1.2 |
0.07 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V1AC1 |
| 1.5 |
0.08 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V1AC2 |
| 2.0 |
0.11 |
D |
22 |
13 |
41x27x83 |
0.37 |
HTG1DF02V1A02 |
| 2.5 |
0.23 |
D |
22 |
13 |
41x27x83 |
0.37 |
HTG1DF02V1AC3 |
| 1/4'' |
1.0 |
0.06 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V1B01 |
| 1.2 |
0.07 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V1BC1 |
| 1.5 |
0.08 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V1BC2 |
| 2.0 |
0.11 |
D |
22 |
13 |
41x27x83 |
0.36 |
HTG1DF02V1B02 |
| 2.5 |
0.23 |
D |
22 |
13 |
41x27x83 |
0.33 |
HTG1DF02V1BC3 |
| 1/8'' |
1.0 |
0.06 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V3A01 |
| 1.2 |
0.07 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V3AC1 |
| 1.5 |
0.08 |
D |
24 |
18.5 |
41x27x83 |
0.45 |
HTG1DF02V3AC2 |
| 2.0 |
0.11 |
D |
22 |
13 |
41x27x83 |
0.37 |
HTG1DF02V3A02 |
| 2.5 |
0.23 |
D |
22 |
13 |
41x27x83 |
0.37 |
HTG1DF02V3AC3 |
| 1/4'' |
1.0 |
0.03 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V3B01 |
| 1.2 |
0.07 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V3BC1 |
| 1.5 |
0.08 |
D |
24 |
18.5 |
41x27x83 |
0.44 |
HTG1DF02V3BC2 |
| 2.0 |
0.11 |
D |
22 |
13 |
41x27x83 |
0.36 |
HTG1DF02V3B02 |
| 2.5 |
0.23 |
D |
22 |
13 |
4127x83 |
0.36 |
HTG1DF02V3BC3 |
| 1/4'' |
8 |
1.0 |
D |
35 |
35 |
55x58x104 |
1.1 |
HTG1DF02T3D08 |
| 3/8'' |
8 |
1.2 |
D |
35 |
35 |
55x58x104 |
1.1 |
HTG1DF02T3D08 |
| 1/2'' |
8 |
2.0 |
D |
35 |
35 |
55x58x104 |
1.1 |
HTG1DF02T3D08 |
HTE系列线圈参数表：
|
线圈型式和编号
|
电压
|
功率
|
所配电磁阀
|
|
50HZ VA
|
60HZ VA
|
直流
|
|
起动
|
保持
|
起动
|
保持
|
W
|
|
S0545
|
AC220V
|
46
|
24
|
46
|
19
|
-----
|
HTG常闭系列
|
|
S0545
|
DC24V
|
------------------------------------
|
15.5W
|
|
D04-3101
|
AC220V
|
55
|
22
|
55
|
18
|
|
|
D04-3106
|
DC24V
|
------------------------------------
|
13W
|
|
D03-5109(整流)
|
AC220V
|
35W
|
HTG1DF02V1AC1,HTG1DF02V1AC2,HTG1DF02V1A02,HTG1DF02V1AC3,
HTG1DF02V1B01,HTG1DF02V1BC2,HTG1DF02V1B02,HTG1DF02V1BC3,
HTG1DF02V3A01,HTG1DF02V3AC1,HTG1DF02V3A02,HTG1DF02V3AC3,
HTG1DF02V3B01,HTG1DF02V3BC1,HTG1DF02V3BC2,HTG1DF02V3B02,
HTG1DF02V3BC3,HTG1DF02T3D08,HTG1DF02T3D08,HTG1DF02V1BC1,
