HTF-2,HTF-3,HTF-4,HTF-6,HTF-8,HTF-10,HTF-20,塑料王电磁阀
HTF-12,HTF-15,HTF-25,
规格特点：
二□二位式常闭型电磁阀，阀体为聚四氟乙稀（塑料王）制作，膜片材料氟橡胶四氢，介质和其它配件隔离，因此可用强酸、强碱性流体和超净介质等
配管方式可任意安装，介质流向和阀上箭头保持一致，为增长寿命最好是不平安装
采用一次性开阀形式，隔离式密封结构，泄漏量为零。
技术参数：
| 公称通径（mm） |
2
|
3
|
4
|
6
|
8
|
10
|
12
|
15
|
20
|
25
|
| 工作压差 |
0.2MPa
|
0～0.1MPa
|
0～0.05MPa
|
| 功率消耗 |
4.5W
|
15W
|
50W
|
| 连接方式 |
管接M8?
|
G3/8"
|
G1/2"
|
G1/2"
|
G3/4"
|
G1"
|
| 电源电压 |
AC220V DC24V 其它定做
|
| 介质温度 |
0～60℃ -10～160℃
|

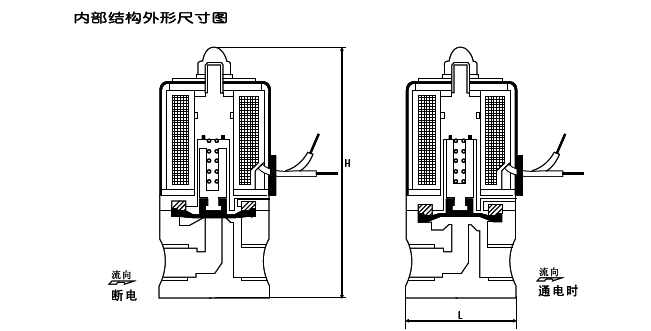

| L（mm） |
38
|
50
|
65
|
85
|
85
|
| H（mm） |
62
|
110
|
125
|
145
|
150
|
结构规格参数：
|
型号
|
长
|
流量孔径
|
密封材料 |
阀体材料 |
备注
|
| HTF-2 |
M8X1 |
2 |
TEFLON
|
TEFLON |
|
| HTF-3 |
3 |
TEFLON
|
TEFLON |
| HTF-4 |
4 |
TEFLON
|
TEFLON |
| HTF-6 |
3/8" |
6 |
VITON
|
TEFLON |
| HTF-8 |
3/8" |
8 |
VITON
|
TEFLON |
| HTF-10 |
3/8" |
10 |
VITON
|
TEFLON |
| HTF-15 |
1/2" |
15 |
VITON
|
TEFLON |
| HTF-20 |
3/4" |
20 |
VITON
|
TEFLON |
| HTF-25 |
1" |
25 |
VITON
|
TEFLON |
