S26791K-04-04,S26791K-05-05,S26791K-06-04,S26791K-10-08,S26791K-12-12,S26791K-16-16,扣压式软管接头

2016-03-12 13:14757

信息概况

价格：未填
型号：S26791K-04-04,S26791K-05-05,S26791K-06-04,S26791K-10-08,S26791K-12-12,S26791K-16-16
发货：3天内

S26791K-04-04,S26791K-05-05,S26791K-06-04,S26791K-10-08,S26791K-12-12,S26791K-16-16,扣压式软管接头

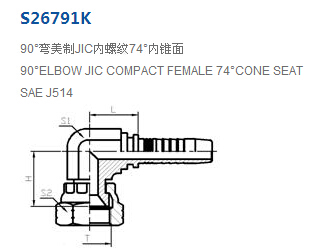

产品技术参数：

代号	螺纹 T	胶管 HOSE BORE		尺寸 DIMENSIONS
PART NO.	THREAD T	公称内径 DN	标号 DASH	L	H	S1	S2
S26791K-04-04	7/16＂X20	6	04	17.5	18	11	14
S26791K-05-05	1/2＂X20	8	05	19.5	18	11	17
S26791K-06-04	9/16＂X18	6	04	19	21	14	19
S26791K-06-06	9/16＂X18	10	06	20	21	16	19
S26791K-08-06	3/4＂X16	10	06	23	25	19	24
S26791K-08-08	3/4＂X16	13	08	23.5	25	22	24
S26791K-10-08	7/8＂X16	13	08	23.5	27.5	22	27
S26791K-10-10	7/8＂X14	16	10	25	27.5	22	27
S26791K-12-12	1.1/16＂X12	19	12	27.5	30	27	32
S26791K-16-16	1.5/16＂X12	25	16	43	34.3	33	41

S26791K-06-06,S26791K-08-06,S26791K-08-08,S26791K-10-10,
