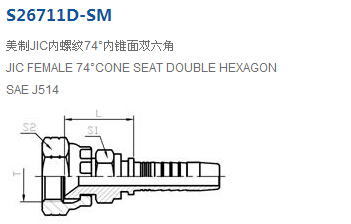

S26711D-04,S26711D-05,S26711D-06,S26711D-08,S26711D-10,S26711D-12,S26711D-16,S26711D-20,扣压式软管接头
产品技术参数：
| 代 号 |
螺纹 T |
软 管 HOSE BORE |
|
尺寸 DIMENSIONS |
| PART NO. |
THREAD T |
公称内径 DN |
标号 DASH |
L |
S1 |
S2 |
| S26711D-04-04SM |
7/16＂X20 |
6 |
04 |
20 |
12 |
14 |
| S26711D-05-04SM |
1/2＂X20 |
6 |
04 |
20.5 |
12 |
17 |
| S26711D-06-04SM |
9/16＂X18 |
6 |
04 |
21 |
14 |
19 |
| S26711D-06-06SM |
9/16＂X18 |
10 |
06 |
21 |
17 |
19 |
| S26711D-08-06SM |
3/4＂X16 |
10 |
06 |
25 |
19 |
24 |
| S26711D-08-08SM |
3/4＂X16 |
13 |
08 |
24.5 |
22 |
24 |
| S26711D-08-10SM |
3/4＂X16 |
16 |
10 |
25.5 |
22 |
24 |
| S26711D-10-08SM |
7/8＂X14 |
13 |
08 |
24 |
22 |
27 |
| S26711D-10-10SM |
7/8＂X14 |
16 |
10 |
27 |
22 |
27 |
| S26711D-12-12SM |
1.1/16＂X12 |
19 |
12 |
31.5 |
27 |
32 |
| S26711D-16-12SM |
1.5/16＂X12 |
19 |
12 |
31.5 |
32 |
41 |
| S26711D-16-16SM |
1.5/16＂X12 |
25 |
16 |
32.5 |
32 |
41 |
| S26711D-20-20SM |
1.5/8＂X12 |
32 |
20 |
37 |
41 |
50 |
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S26712D-XX-XXSM。 S26711D-04-04SM,S26711D-05-04SM,S26711D-06-04SM,S26711D-06-06SM,S26711D-08-06SM,
