S26711D-04-04,S26711D-05-04,S26711D-06-04,S26711D-10-08,S26711D-16-12,S26711D-20-20,扣压式软管接头
2015-12-18 11:50380
信息概况
  • 价格：未填
  • 型号：S26711D-04-04,S26711D-05-04,S26711D-06-04,S26711D-10-08,S26711D-16-12,S26711D-20-20
  • 发货：3天内
发送询价

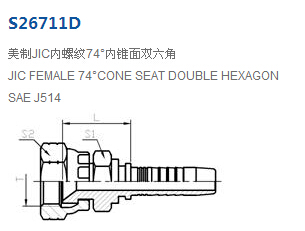

S26711D-04-04,S26711D-05-04,S26711D-06-04,S26711D-10-08,S26711D-16-12,S26711D-20-20,扣压式软管接头

产品技术参数：

代  号 螺纹 T            软 管 HOSE BORE   尺寸  DIMENSIONS
PART NO. THREAD T 公称内径 DN 标号 DASH L S1 S2
S26711D-04-04 7/16＂X20 6 04 20 14 14
S26711D-05-04 1/2＂X20 6 04 20.5 17 17
S26711D-06-04 9/16＂X18 6 04 21 19 19
S26711D-06-06 9/16＂X18 10 06 21 19 19
S26711D-08-06 3/4＂X16 10 06 25 24 24
S26711D-08-08 3/4＂X16 13 08 24.5 24 24
S26711D-08-10 3/4＂X16 16 10 25.5 24 24
S26711D-10-08 7/8＂X14 13 08 28 27 27
S26711D-10-10 7/8＂X14 16 10 29 27 27
S26711D-12-12 1.1/16＂X12 19 12 31.5 32 32
S26711D-16-12 1.5/16＂X12 19 12 33.5 41 41
S26711D-16-16 1.5/16＂X12 25 16 34.5 41 41
S26711D-16-20 1.5/16＂X12 32 20 36.5 41 41
S26711D-20-20 1.5/8＂X12 32 20 39 50 50
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S26712D-XX-XX。 S26711D-06-06,S26711D-08-06,S26711D-08-08,S26711D-08-10,S26711D-10-10,S26711D-12-12,
S26711D-16-16,S26711D-16-20,
