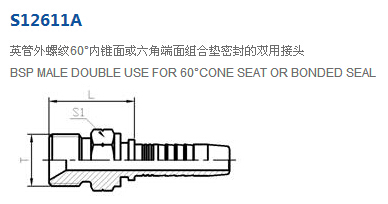

S12611A-04-04,S12611A-06-05,S12611A-08-06,S12611A-12-08,S12611A-20-20,S12611A-32-32,扣压式软管接头

产品技术参数：

代  号 螺纹 T 软 管 HOSE BORE 尺寸  DIMENSIONS
PART NO. THREAD T 公称内径 DN 标号 DASH L S1
S12611A-04-04 G1/4＂X19 6 04 25.5 19
S12611A-06-05 G3/8＂X19 8 05 26.5 22
S12611A-06-06 G3/8＂X19 10 06 26.5 22
S12611A-06-08 G3/8＂X19 13 08 28 22
S12611A-08-06 G1/2＂X14 10 06 32 27
S12611A-08-08 G1/2＂X14 13 08 33 27
S12611A-08-10 G1/2＂X14 16 10 34 27
S12611A-10-08 G5/8＂X14 13 08 36 30
S12611A-10-10 G5/8＂X14 16 10 37 30
S12611A-12-08 G3/4＂X14 13 08 35.5 32
S12611A-12-10 G3/4＂X14 16 10 37 32
S12611A-12-12 G3/4＂X14 19 12 37 32
S12611A-16-12 G1＂X11 19 12 41 41
S12611A-16-16 G1＂X11 25 16 42 41
S12611A-20-16 G1.1/4＂X11 25 16 45 50
S12611A-20-20 G1.1/4＂X11 32 20 45 50
S12611A-24-20 G1.1/2＂X11 32 20 49 55
S12611A-24-24 G1.1/2＂X11 38 24 49 55
S12611A-32-32 G2＂X11 51 32 54.5 70
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S12612A-XX-XX。 S12611A-06-06,S12611A-06-08,S12611A-08-08,S12611A-08-10,S12611A-10-08,S12611A-10-10,
S12611A-12-10,S12611A-12-12,S12611A-16-12,S12611A-16-16,S12611A-20-16,S12611A-24-20,S12611A-24-24,
