S12611A-06-05RW,S12611A-08-06RW,S12611A-12-10RW,S12611A-20-16RW,S12611A-32-32RW,一体式软管接头
2015-12-13 20:50449
信息概况
  • 价格：未填
  • 型号：S12611A-06-05RW,S12611A-08-06RW,S12611A-12-10RW,S12611A-20-16RW,S12611A-32-32RW
  • 发货：3天内
发送询价

S12611A-06-05RW,S12611A-08-06RW,S12611A-12-10RW,S12611A-20-16RW,S12611A-32-32RW,一体式软管接头

产品技术参数：

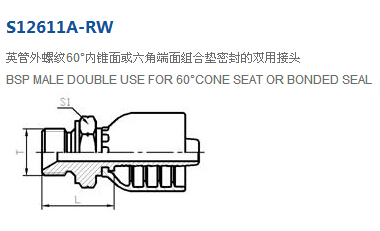

代  号 螺纹 T 软 管 HOSE BORE 尺寸  DIMENSIONS
PART NO. THREAD T 公称内径 DN 标号 DASH L S1
S12611A-04-04RW G1/4＂X19 6 04 25.5 19
S12611A-06-05RW G3/8＂X19 8 05 26.5 22
S12611A-06-06RW G3/8＂X19 10 06 26.5 22
S12611A-06-08RW G3/8＂X19 13 08 28 22
S12611A-08-06RW G1/2＂X14 10 06 32 27
S12611A-08-08RW G1/2＂X14 13 08 33 27
S12611A-08-10RW G1/2＂X14 16 10 34 27
S12611A-10-08RW G5/8＂X14 13 08 36 30
S12611A-10-10RW G5/8＂X14 16 10 37 30
S12611A-12-08RW G3/4＂X14 13 08 35.5 32
S12611A-12-10RW G3/4＂X14 16 10 37 32
S12611A-12-12RW G3/4＂X14 19 12 37 32
S12611A-16-12RW G1＂X14 19 12 41 41
S12611A-16-16RW G1＂X14 25 16 42 41
S12611A-20-16RW G1.1/4＂X11 25 16 45 50
S12611A-20-20RW G1.1/4＂X11 32 20 45 50
S12611A-24-20RW G1.1/2＂X11 32 20 49 55
S12611A-24-24RW G1.1/2＂X11 38 24 49 55
S12611A-32-32RW G2＂X11 51 32 54.5 70
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S12612A-XX-XXRW。 S12611A-06-06RW,S12611A-04-04RW,S12611A-06-08RW,S12611A-08-08RW,S12611A-08-10RW,
S12611A-10-08RW,S12611A-10-10RW,S12611A-12-08RW,S12611A-12-12RW,S12611A-16-12RW,
S12611A-16-16RW,S12611A-20-20RW,S12611A-24-20RW,S12611A-24-24RW,
