S1CW-12-06,S1DW-14-06,S1CW-22-15,S1DW-24-16,S1CW-30-22,S1DW-42-30,S1CW-52-42,焊接接头

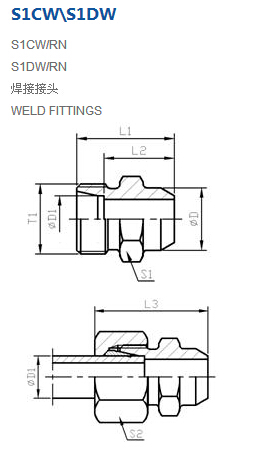

产品技术参数：
| 系列 |
代号 RAPT NO. |
螺纹 THREAD |
管子外径 TUBE O.D |
尺寸 DIMENSIONS |
重量
克/件 |
工作压力 (bar) |
| T1 |
D1 |
D |
L1 |
L2 |
L3 |
S1 |
S2 |
| L |
S1CW-12-06 |
M12X1.5 |
06 |
10 |
21 |
14 |
29 |
12 |
14 |
11 |
315 |
| S1CW-14-08 |
M14X1.5 |
08 |
12 |
23 |
16 |
31 |
14 |
17 |
15 |
315 |
| S1CW-16-10 |
M16X1.5 |
10 |
14 |
25 |
18 |
33 |
17 |
19 |
22 |
315 |
| S1CW-18-12 |
M18X1.5 |
12 |
16 |
25 |
18 |
33 |
19 |
22 |
25 |
315 |
| S1CW-22-15 |
M22X1.5 |
15 |
19 |
29 |
22 |
37 |
22 |
27 |
44 |
315 |
| S1CW-26-18 |
M26X1.5 |
18 |
22 |
31 |
23.5 |
40 |
27 |
32 |
67 |
315 |
| S1CW-30-22 |
M30X2 |
22 |
27 |
36 |
28.5 |
45 |
32 |
36 |
98 |
160 |
| S1CW-36-28 |
M36X2 |
28 |
32 |
38 |
30.5 |
47 |
41 |
41 |
165 |
160 |
| S1CW-45-35 |
M45X2 |
35 |
40 |
43 |
32.5 |
54 |
46 |
50 |
232 |
160 |
| S1CW-52-42 |
M52X2 |
42 |
46 |
46 |
35 |
58 |
55 |
60 |
342 |
160 |
| S |
S1DW-14-06 |
M14X1.5 |
06 |
11 |
26 |
19 |
34 |
14 |
17 |
21 |
630 |
| S1DW-16-08 |
M16X1.5 |
08 |
13 |
28 |
21 |
36 |
17 |
19 |
31 |
630 |
| S1DW-18-10 |
M18X1.5 |
10 |
15 |
30 |
22.5 |
39 |
19 |
22 |
41 |
630 |
| S1DW-20-12 |
M20X1.5 |
12 |
17 |
32 |
24.5 |
41 |
22 |
24 |
93 |
630 |
| S1DW-22-14 |
M22X1.5 |
14 |
19 |
35 |
27 |
45 |
24 |
27 |
55 |
630 |
| S1DW-24-16 |
M24X1.5 |
16 |
21 |
35 |
26.5 |
45 |
27 |
30 |
82 |
400 |
| S1DW-30-20 |
M30X2 |
20 |
26 |
40 |
29.5 |
51 |
32 |
36 |
131 |
400 |
| S1DW-36-25 |
M36X2 |
25 |
31 |
44 |
32 |
56 |
41 |
46 |
219 |
400 |
| S1DW-42-30 |
M42X2 |
30 |
36 |
49 |
35.5 |
62 |
46 |
50 |
297 |
400 |
| S1DW-52-38 |
M52X2 |
38 |
44 |
54 |
38 |
69 |
55 |
60 |
448 |
315 |
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如S1CW-30-22/RN。 S1CW-14-08,S1CW-16-10,S1CW-18-12,S1CW-26-18,S1CW-36-28,S1CW-45-35,S1DW-16-08,
S1DW-18-10,S1DW-20-12,S1DW-22-14,S1DW-30-20,S1DW-36-25,S1DW-52-38,
