S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP,弯通接头
2015-12-11 19:53365
信息概况
  • 价格：未填
  • 型号： S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP
  • 发货：3天内
发送询价
 S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP,弯通接头

产品技术参数：

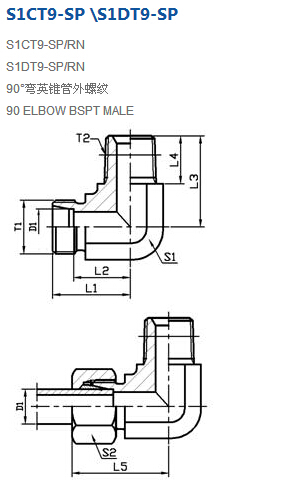

系列 代号           RAPT  NO. 螺纹  THREAD 管子外径 TUBE O.D 尺寸      DIMENSIONS 重量
克/件		 工作压力    (bar)
T1 T2 D1 L1 L2 L3 L4 L5 S1 S2
L S1CT9-12-02SP M12X1.5 R1/8＂X28 06 19 12 20 9.5 27 12 14 30 315
S1CT9-12-04SP M12X1.5 R1/4＂X19 06 21 14 26 12 29 12 14 47 315
S1CT9-14-04SP M14X1.5 R1/4＂X19 08 21 14 26 14 29 14 17 46 315
S1CT9-14-02SP M14X1.5 R1/8＂X28 08 21 14 26 9.5 29 14 17 49 315
S1CT9-14-06SP M14X1.5 R3/8＂X19 08 24 17 28 14 32 19 17 94 315
S1CT9-16-04SP M16X1.5 R1/4＂X19 10 22 15 27 14 30 17 19 61 315
S1CT9-16-06SP M16X1.5 R3/8＂X19 10 24 17 28 14 32 19 19 87 315
S1CT9-18-06SP M18X1.5 R3/8＂X19 12 24 17 28 14 32 19 22 88 315
S1CT9-18-04SP M18X1.5 R1/4＂X19 12 24 17 27 14 32 19 22 80 315
S1CT9-18-08SP M18X1.5 R1/2＂X14 12 28 21 34 14 36 19 22 89 315
S1CT9-22-08SP M22X1.5 R1/2＂X14 15 28 21 34 14 36 22 27 94 315
S1CT9-26-08SP M26X1.5 R1/2＂X14 18 31 23.5 36 17 40 27 32 141 315
S S1DT9-14-04SP M14X1.5 R1/4＂X19 06 23 16 26 14 31 14 17 56 400
S1DT9-14-06SP M14X1.5 R3/8＂X19 06 25 18 20 12 33 19 17 61 400
S1DT9-16-04SP M16X1.5 R1/4＂X19 08 24 17 27 14 32 17 19 73 400
S1DT9-16-06SP M16X1.5 R3/8＂X19 08 25 18 28 12 33 19 19 63 400
S1DT9-18-06SP M18X1.5 R3/8＂X19 10 25 17.5 28 14 34 19 22 104 400
S1DT9-18-04SP M18X1.5 R1/4＂X19 10 25 17.5 28 14 34 19 22 59 400
S1DT9-18-08SP M18X1.5 R1/2＂X14 10 30 22.5 32 14 39 22 22 98 400
S1DT9-20-06SP M20X1.5 R3/8＂X19 12 29 21.5 28 14 38 19 24 126 400
S1DT9-20-08SP M20X1.5 R1/2＂X14 12 30 22.5 32 14 39 24 24 97 400
S1DT9-22-08SP M22X1.5 R1/2＂X14 14 30 22 32 14 40 22 27 101 400
S1DT9-24-08SP M24X1.5 R1/2＂X14 16 33 24.5 32 17 43 24 30 150 400
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如S1CT9-30-12SP/RN。 S1CT9-12-04SP,S1CT9-14-04SP,S1CT9-14-02SP,S1CT9-14-06SP,S1CT9-16-06SP,S1CT9-18-06SP,
S1CT9-18-04SP,S1CT9-18-08SP,S1DT9-14-04SP,S1DT9-14-06SP,S1DT9-16-04SP,S1DT9-16-06SP,
S1DT9-18-06SP,S1DT9-18-04SP,S1DT9-18-08SP,S1DT9-20-08SP,S1DT9-22-08SP,
