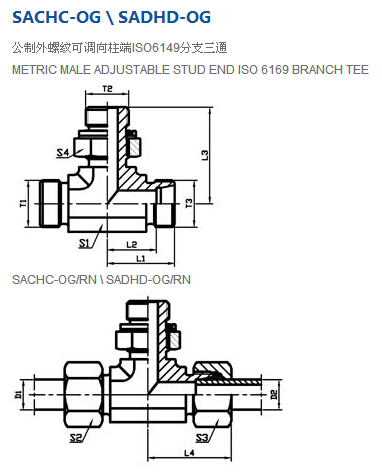

SACHC-12-10-12OG,SADHD-14-12-14OG,SACHC-22-18-22OG,SADHD-30-27-30OG,SADHD-42OG,可调向接头
产品技术参数：
| 系列 |
代号 RAPT NO. |
螺纹 THREAD |
管子外径 TUBE O.D |
尺寸 DIMENSIONS |
重量
克/件 |
工作压力(bar) |
| T1 |
T2 |
T3 |
D1、D2 |
L1 |
L2 |
L3 |
L4 |
S1 |
S2、S3 |
S4 |
| L |
SACHC-12-10-12OG |
M12X1.5 |
M10X1 |
M12X1.5 |
06 |
21 |
14 |
27 |
29 |
14 |
14 |
14 |
45 |
315 |
| SACHC-14-12-14OG |
M14X1.5 |
M12X1.5 |
M14X1.5 |
08 |
23 |
16 |
32 |
31 |
14 |
17 |
17 |
68 |
315 |
| SACHC-16-14-16OG |
M16X1.5 |
M14X1.5 |
M16X1.5 |
10 |
24 |
17 |
34 |
32 |
19 |
19 |
19 |
89 |
315 |
| SACHC-18-16-18OG |
M18X1.5 |
M16X1.5 |
M18X1.5 |
12 |
26 |
19 |
35 |
34 |
19 |
22 |
22 |
121 |
250 |
| SACHC-22-18-22OG |
M22X1.5 |
M18X1.5 |
M22X1.5 |
15 |
28 |
21 |
41 |
36 |
22 |
27 |
24 |
177 |
250 |
| SACHC-26-22-26OG |
M26X1.5 |
M22X1.5 |
M26X1.5 |
18 |
31.5 |
24 |
44 |
40 |
27 |
32 |
27 |
263 |
250 |
| SACHC-30-27-30OG |
M30X2 |
M27X2 |
M30X2 |
22 |
35.5 |
28 |
49 |
44 |
30 |
36 |
32 |
396 |
160 |
| SACHC-36-33-36OG |
M36X2 |
M33X2 |
M36X2 |
28 |
38.5 |
31 |
52 |
47 |
36 |
41 |
41 |
621 |
160 |
| S |
SADHD-14-12-14OG |
M14X1.5 |
M12X1.5 |
M14X1.5 |
06 |
22 |
15 |
32 |
30 |
14 |
17 |
17 |
71 |
400 |
| SADHD-16-14-16OG |
M16X1.5 |
M14X1.5 |
M16X1.5 |
08 |
24 |
17 |
36 |
32 |
19 |
19 |
19 |
91 |
400 |
| SADHD-18-16-18OG |
M18X1.5 |
M16X1.5 |
M18X1.5 |
10 |
25.5 |
18 |
38 |
34 |
19 |
22 |
22 |
124 |
400 |
| SADHD-20-18-20OG |
M20X1.5 |
M18X1.5 |
M20X1.5 |
12 |
28.5 |
21 |
43 |
38 |
22 |
24 |
24 |
160 |
400 |
| SADHD-24-22-24OG |
M24X1.5 |
M22X1.5 |
M24X1.5 |
16 |
33.5 |
25 |
49 |
43 |
27 |
30 |
27 |
213 |
400 |
| SADHD-30-27-30OG |
M30X2 |
M27X2 |
M30X2 |
20 |
38.5 |
28 |
55 |
49 |
30 |
36 |
32 |
409 |
400 |
| SADHD-36-33-36OG |
M36X2 |
M33X2 |
M36X2 |
25 |
42 |
30 |
60 |
54 |
36 |
46 |
41 |
657 |
350 |
| SADHD-42OG |
M42X2 |
M42X2 |
M42X1.5 |
30 |
49.5 |
36 |
68 |
62 |
46 |
50 |
50 |
1006 |
250 |
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如SACHC-30-27-30OG/RN。
