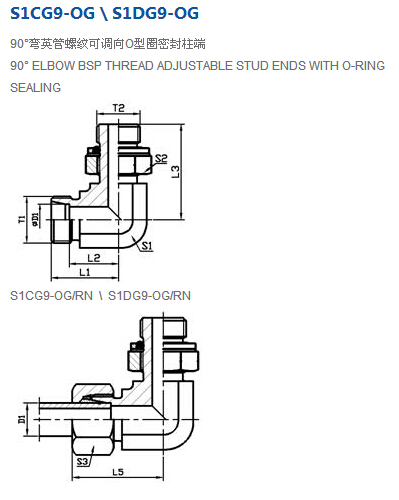

S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG,可调向接头
2015-12-11 12:18425
信息概况
  • 价格：未填
  • 型号： S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG
  • 发货：3天内
发送询价
 S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG,可调向接头

产品技术参数：

系列 代号           RAPT  NO. 螺纹  THREAD 管子外径 TUBE O.D 尺寸      DIMENSIONS 重量
克/件		 工作压力     (bar)
T1 T2 D1 L1 L2 L3 L4 S1 S2 S3
L S1CG9-14-04OG M14X1.5 G1/4＂X19 08 23 16 32 31 14 19 17 59 315
S1CG9-16-04OG M16X1.5 G1/4＂X19 10 24 17 34 32 19 19 19 82 315
S1CG9-18-06OG M18X1.5 G3/8＂X19 12 26 19 37 34 19 22 22 96 250
S1CG9-22-08OG M22X1.5 G1/2＂X14 15 28 21 43 36 22 27 27 149 250
S1CG9-26-08OG M26X1.5 G1/2＂X14 18 31.5 24 46 40 27 27 32 221 250
S1CG9-30-12OG M30X2 G3/4＂X14 22 35.5 28 49 44 30 36 36 310 160
S1CG9-36-16OG M36X2 G1＂X11 28 38.5 31 59 47 36 41 41 455 160
S1CG9-45-20OG M45X2 G1.1/4＂X11 35 48.5 38 65 59 50 50 50 1043 160
S1CG9-52-24OG M52X2 G1.1/2＂X11 42 49 38 67 61 50 55 60 994 160
S S1DG9-14-04OG M14X1.5 G1/4＂X19 06 22 15 32 30 14 19 17 56 315
S1DG9-16-04OG M16X1.5 G1/4＂X19 08 24 17 36 32 19 19 19 88 315
S1DG9-18-06OG M18X1.5 G3/8＂X19 10 25 18 38 34 19 22 22 98 250
S1DG9-20-06OG M20X1.5 G3/8＂X19 12 29 22 38 38 22 22 24 128 250
S1DG9-22-08OG M22X1.5 G1/2＂X14 14 30 22 43 40 22 27 27 147 250
S1DG9-24-08OG M24X1.5 G1/2＂X14 16 33 25 46 43 27 27 30 234 250
S1DG9-30-12OG M30X2 G3/4＂X14 20 38 28 51 49 30 36 36 344 250
S1DG9-36-16OG M36X2 G1＂X11 25 42 30 58 54 36 41 46 533 250
S1DG9-42-20OG M42X2 G1.1/4＂X11 30 49 36 64 62 50 50 50 1085 160
S1DG9-52-24OG M52X2 G1.1/2＂X11 38 50 34 70 65 50 55 60 1116 160
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如S1CG9-30-12OG/RN。 S1CG9-16-04OG,S1CG9-18-06OG,S1CG9-22-08OG,S1CG9-30-12OG,S1CG9-36-16OG,
