气动接头
首页 > 了解产品 > 气动辅助元件 > 接头类 > 气动接头
S1FM-04-12WD,S1FM-06-14WD,S1FM-06-16WD,S1FM-08-18WD,S1FM-10-22WD,S1FM-12-27WD,美制接头
2015-12-10 19:14418
信息概况
  • 价格：未填
  • 型号： S1FM-04-12WD,S1FM-06-14WD,S1FM-06-16WD,S1FM-08-18WD,S1FM-10-22WD,S1FM-12-27WD
  • 发货：3天内
发送询价
 S1FM-04-12WD,S1FM-06-14WD,S1FM-06-16WD,S1FM-08-18WD,S1FM-10-22WD,S1FM-12-27WD,美制接头

产品技术参数：

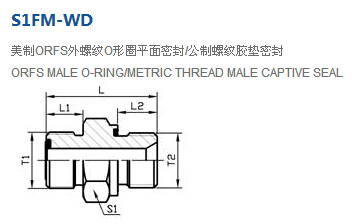

代号                         PART  NO. 螺纹 THREAD 尺寸 DIMENSIONS 重量（g)
T1 T2 L1 L2 L S1
S1FM-04-12WD 9/16＂X18 M12X1.5 10 12 29.7 17 32
S1FM-06-14WD 11/16＂X16 M14X1.5 11 12 31.9 22 51
S1FM-06-16WD 11/16＂X16 M16X1.5 11 12 31.9 22 55
S1FM-08-18WD 13/16＂X16 M18X1.5 13 12 34.6 24 74
S1FM-10-22WD 1/4＂X14 M22X1.5 15.5 14 41.1 27 118
S1FM-12-27WD 1.3/16＂X12 M27X2 17 16 46.1 32 185
S1FM-16-33WD 1.7/16＂X12 M33X2 17.5 18 49.8 41 275
S1FM-20-42WD 1.11/16＂X12 M42X2 17.5 20 53.8 50 421
S1FM-16-33WD,S1FM-20-42WD,
