S1FG9-04OG,S1FG9-06OG,S1FG9-08OG,S1FG9-12OG,S1FG9-16OG,S1FG9-20OG,S1FG9-24OG,美制接头
2015-12-10 18:57404
信息概况
  • 价格：未填
  • 型号： S1FG9-04OG,S1FG9-06OG,S1FG9-08OG,S1FG9-12OG,S1FG9-16OG,S1FG9-20OG,S1FG9-24OG
  • 发货：3天内
发送询价
 S1FG9-04OG,S1FG9-06OG,S1FG9-08OG,S1FG9-12OG,S1FG9-16OG,S1FG9-20OG,S1FG9-24OG,美制接头

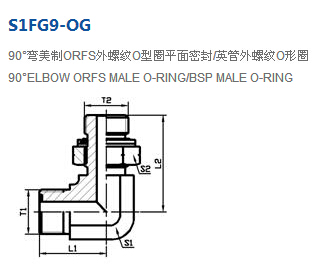

产品技术参数：

代号                          PART  NO.     螺纹 THREAD 尺寸 DIMENSIONS 重量（g) 工作压力MPa
T1 T2 L1 L2 S1 S2
S1FG9-04-02OG 9/16＂X18 G1/8＂X28 21.5 30 14 14 40 31.5
S1FG9-04OG 9/16＂X18 G1/4＂X19 23.5 36 19 19 63
S1FG9-04-06OG 9/16＂X18 G3/8＂X19 24.5 38 19 22 85 25
S1FG9-06-04OG 11/16＂X16 G1/4＂X19 25 36 19 19 72 31.5
S1FG9-06OG 11/16＂X16 G3/8＂X19 26.5 38 19 22 100 25
S1FG9-08-04OG 13/16＂X16 G1/4＂X19 28 35.5 19 19 88 31.5
S1FG9-08-06OG 13/16＂X16 G3/8＂X19 28 38 19 22 115 25
S1FG9-08OG 13/16＂X16 G1/2＂X14 31 48.5 27 27 168
S1FG9-08-12OG 13/16＂X16 G3/4＂X14 33.5 51.5 30 36 245 16
S1FG9-10-06OG 1/4＂X14 G3/8＂X19 33.5 40.5 27 22 164 25
S1FG9-10-08OG 1/4＂X14 G1/2＂X14 33.5 48.5 27 27 208
S1FG9-10-12OG 1/4＂X14 G3/4＂X14 36 51.5 30 36 287
S1FG9-10-16OG 1/4＂X14 G1＂X11 39.5 58.5 36 41 440 16
S1FG9-12-08OG 1.3/16＂X12 G1/2＂X14 37.5 49.5 30 27 265 25
S1FG9-12OG 1.3/16＂X12 G3/4＂X14 37.5 51.5 30 36 335 16
S1FG9-12-16OG 1.3/16＂X12 G1＂X11 41 48.5 36 41 437
S1FG9-16-12OG 1.7/16＂X12 G3/4＂X14 41.5 56 36 36 402
S1FG9-16OG 1.7/16＂X12 G1＂X11 41.5 48.5 36 41 264
S1FG9-16-20OG 1.7/16＂X12 G1.1/4＂X11 44.5 61 41 50 662
S1FG9-20-16OG 1.11/16＂X12 G1＂X11 44.5 61 41 41 584
S1FG9-20OG 1.11/16＂X12 G1.1/4＂X11 44.5 61 41 50 725
S1FG9-20-24OG 1.11/16＂X12 G1.1/2＂X11 49 64.5 50 55 852
S1FG9-24OG 2＂X12 G1.1/2＂X11 49 64.5 50 55 972
S1FG9-04-02OG,S1FG9-04-06OG,S1FG9-06-04OG,S1FG9-08-04OG,S1FG9-08-06OG,S1FG9-08-12OG,
S1FG9-10-06OG,S1FG9-10-08OG,S1FG9-10-12OG,S1FG9-10-16OG,S1FG9-12-08OG,S1FG9-12-16OG,
S1FG9-16-12OG,S1FG9-16-20OG,S1FG9-20-16OG,S1FG9-20-24OG,
