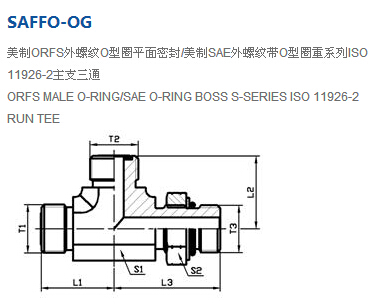

SAFFO-04OG,SAFFO-06OG,SAFFO-08OG,SAFFO-10OG,SAFFO-12OG,SAFFO-16OG,SAFFO-20OG,SAFFO-24OG,美制接头
产品技术参数：
| 代号 PART NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
重量（g) |
工作压力MPa |
| T1 |
T2 |
T3 |
L1 |
L2 |
L3 |
S1 |
S2 |
| SAFFO-04OG |
9/16＂X18 |
9/16＂X18 |
7/16＂X18 |
21.5 |
21.5 |
33 |
14 |
17 |
72 |
40 |
| SAFFO-04-04-06OG |
9/16＂X18 |
9/16＂X18 |
9/16＂X18 |
23.5 |
23.5 |
37 |
19 |
19 |
98 |
| SAFFO-06OG |
11/16＂X16 |
11/16＂X16 |
9/16＂X18 |
25 |
25 |
37 |
19 |
19 |
121 |
| SAFFO-06-06-08OG |
11/16＂X16 |
11/16＂X16 |
3/4＂X16 |
26.5 |
26.5 |
40.5 |
19 |
24 |
170 |
| SAFFO-08OG |
13/16＂X16 |
13/16＂X16 |
3/4＂X16 |
28 |
28 |
40.5 |
19 |
24 |
184 |
| SAFFO-08-08-10OG |
13/16＂X16 |
13/16＂X16 |
7/8＂X14 |
30.5 |
30.5 |
50 |
27 |
27 |
250 |
| SAFFO-10OG |
1＂X14 |
1＂X14 |
7/8＂X14 |
33.5 |
33.5 |
50 |
27 |
27 |
315 |
| SAFFO-10-10-12OG |
1＂X14 |
1＂X14 |
1.1/16＂X12 |
36.5 |
36.5 |
55 |
30 |
32 |
423 |
| SAFFO-12OG |
1.3/16＂X12 |
1.3/16＂X12 |
1.1/16＂X12 |
37.5 |
37.5 |
55 |
30 |
32 |
487 |
| SAFFO-12-12-16OG |
1.3/16＂X12 |
1.3/16＂X12 |
1.5/16＂X15 |
41 |
41 |
60 |
36 |
41 |
675 |
31.5 |
| SAFFO-16OG |
1.7/16＂X12 |
1.7/16＂X12 |
1.5/16＂X12 |
41.5 |
41.5 |
60 |
36 |
41 |
740 |
| SAFFO-16-16-20OG |
1.7/16＂X12 |
1.7/16＂X12 |
1.5/8＂X12 |
44.5 |
44.5 |
62 |
41 |
50 |
905 |
25 |
| SAFFO-20OG |
1.11/16＂X12 |
1.11/16＂X12 |
1.5/8＂X12 |
44.5 |
44.5 |
62 |
41 |
50 |
1030 |
| SAFFO-24OG |
2＂X12 |
2＂X12 |
1.7/8＂X12 |
49 |
49 |
66 |
50 |
55 |
1446 |
20 |
SAFFO-04-04-06OG,SAFFO-06-06-08OG,SAFFO-08-08-10OG,SAFFO-10-10-12OG,
SAFFO-12-12-16OG,SAFFO-16-16-20OG,
