气动接头
首页 > 了解产品 > 气动辅助元件 > 接头类 > 气动接头
SAFFG-04OG,SAFFG-06OG,SAFFG-08OG,SAFFG-12OG,SAFFG-16OG,SAFFG-04-04-02OG,美制接头
2015-12-10 12:25407
信息概况
  • 价格：未填
  • 型号： SAFFG-04OG,SAFFG-06OG,SAFFG-08OG,SAFFG-12OG,SAFFG-16OG,SAFFG-04-04-02OG
  • 发货：3天内
发送询价
 SAFFG-04OG,SAFFG-06OG,SAFFG-08OG,SAFFG-12OG,SAFFG-16OG,SAFFG-04-04-02OG,美制接头

产品技术参数：

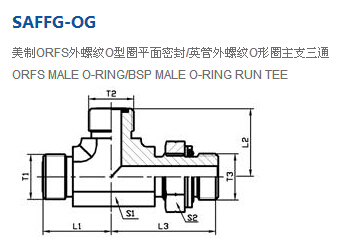

代号                                   P ART  NO.     螺纹 THREAD 尺寸 DIMENSIONS 重量（g) 工作压力MPa
T1 T2 T3 L1 L2 L3 S1 S2
SAFFG-04-04-02OG 9/16＂X18 9/16＂X18 G1/8＂X28 21.5 21.5 30 14 14 65 31.5
SAFFG-04OG 9/16＂X18 9/16＂X18 G1/4＂X19 23.5 23.5 36 19 19 90
SAFFG-06-06-04OG 11/16＂X16 11/16＂X16 G1/4＂X19 25 25 36 19 19 118
SAFFG-06OG 11/16＂X16 11/16＂X16 G3/8＂X19 26.5 26.5 38 19 22 145 25
SAFFG-08-08-06OG 13/16＂X16 13/16＂X16 G3/8＂X19 28 28 38 19 22 160
SAFFG-08OG 13/16＂X16 13/16＂X16 G1/2＂X14 31 31 48.5 27 27 232
SAFFG-10-10-08OG 1＂X14 1＂X14 G1/2＂X14 33.5 33.5 48.5 27 27 312
SAFFG-10-10-12OG 1＂X14 1＂X14 G3/4＂X14 36 36 51.5 30 36 399 16
SAFFG-12OG 1.3/16＂X12 1.3/16＂X12 G3/4＂X14 37.5 37.5 51.5 30 36 493
SAFFG-12-12-16OG 1.3/16＂X12 1.3/16＂X12 G1＂X11 41 41 58.5 37 41 664
SAFFG-16OG 1.7/16＂X12 1.7/16＂X12 G1＂X11 41.5 41.5 58.5 37 41 795
SAFFG-06-06-04OG,SAFFG-08-08-06OG,SAFFG-10-10-08OG,SAFFG-10-10-12OG,SAFFG-12-12-16OG,
