气动接头

S2J9-04,S2J9-05,S2J9-06,S2J9-08,S2J9-10,S2J9-12,S2J9-14,S2J9-16,S2J9-20,S2J9-24,S2J9-32,锥面密封接头

2015-12-10 12:10343

信息概况

价格：未填
型号： S2J9-04,S2J9-05,S2J9-06,S2J9-08,S2J9-10,S2J9-12,S2J9-14,S2J9-16,S2J9-20,S2J9-24,S2J9-32
发货：3天内

S2J9-04,S2J9-05,S2J9-06,S2J9-08,S2J9-10,S2J9-12,S2J9-14,S2J9-16,S2J9-20,S2J9-24,S2J9-32,锥面密封接头

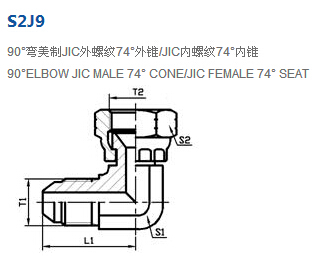

产品技术参数：

代号 PART NO.	螺纹 THREAD		尺寸 DIMENSIONS			重量（g)	工作压力MPa
代号 PART NO.	T1	T2	L1	S1	S2	重量（g)	工作压力MPa
S2J9-04	7/16＂X20	7/16＂X20	22.6	11	15	20	34.5
S2J9-05	1/2＂X20	1/2＂X20	24.1	14	17	29
S2J9-06	9/16＂X18	9/16＂X18	26.9	14	19	35
S2J9-06-08	9/16＂X18	3/4＂X16	28.5	16	24	45	31
S2J9-08-06	3/4＂X16	9/16＂X18	32	19	19	72
S2J9-08	3/4＂X16	3/4＂X16	32	19	24	79
S2J9-08-10	3/4＂X16	7/8＂X14	32	19	27	88	24
S2J9-10	7/8＂X14	7/8＂X14	36.8	22	27	112
S2J9-10-08	7/8＂X14	3/4＂X16	36.8	22	24	102
S2J9-10-12	7/8＂X14	1.1/16＂X12	39.5	24	32	137
S2J9-12	1.1/16＂X12	1.1/16＂X12	42.2	27	32	183
S2J9-12-10	1.1/16＂X12	7/8＂X14	42.2	27	27	163
S2J9-12-16	1.1/16＂X12	1.5/16＂X12	46	30	41	216	21
S2J9-14	1.3/16＂X12	1.3/16＂X12	45.7	30	36	230	21
S2J9-16	1.5/16＂X12	1.5/16＂X12	46	33	41	275	17
S2J9-16-20	1.5/16＂X12	1.5/8＂X12	54	41	50	416
S2J9-20-16	1.5/8＂X12	1.5/16＂X12	52.3	41	41	405
S2J9-20	1.5/8＂X12	1.5/8＂X12	52.3	41	50	510
S2J9-20-24	1.5/8＂X12	1.7/8＂X12	59.5	48	55	582	14
S2J9-24-20	1.7/8＂X12	1.5/8＂X12	62.5	48	50	658
S2J9-24	1.7/8＂X12	1.7/8＂X12	62.5	48	55	685
S2J9-32	2.1/2＂X12	2.1/2＂X12	78	63	75	1412	10.5

S2J9-06-08,S2J9-08-06,S2J9-08-10,S2J9-10-08,S2J9-10-12,S2J9-12-10,S2J9-12-16,
S2J9-16-20,S2J9-20-16,S2J9-20-24,S2J9-24-20,
