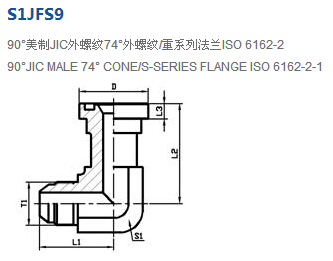

S1JFS9-08,S1JFS9-10-08,S1JFS9-12,S1JFS9-16,S1JFS9-20,S1JFS9-24,锥面密封接头
产品技术参数：
| 代号 PART NO. |
螺纹 THREAD |
法兰型号 FLANGE SIZE |
尺寸 DIMENSIONS |
重量（g) |
工作压力MPa |
| T1 |
L1 |
L2 |
L3 |
D |
S1 |
| S1JFS9-08 |
3/4＂X16 |
1/2＂ |
32.5 |
44 |
7.75 |
31.7 |
24 |
185 |
31 |
| S1JFS9-10-08 |
7/8＂X14 |
1/2＂ |
37.5 |
44 |
7.75 |
31.7 |
24 |
202 |
24 |
| S1JFS9-10-12 |
7/8＂X14 |
3/4＂ |
41 |
54.1 |
8.76 |
41.3 |
30 |
297 |
| S1JFS9-12 |
1.1/16＂X12 |
3/4＂ |
44.2 |
54.1 |
8.76 |
41.3 |
30 |
326 |
| S1JFS9-12-16 |
1.1/16＂X12 |
1＂ |
48 |
60.2 |
9.6 |
47.6 |
36 |
455 |
| S1JFS9-16 |
1.5/16＂X12 |
1＂ |
51.5 |
60.2 |
9.53 |
47.6 |
36 |
503 |
21 |
| S1JFS9-16-12 |
1.5/16＂X12 |
3/4＂ |
49 |
54.1 |
8.76 |
41.3 |
30 |
386 |
| S1JFS9-16-20 |
1.5/16＂X12 |
1.1/4＂ |
54 |
66.5 |
10.29 |
54 |
41 |
634 |
| S1JFS9-20 |
1.5/8＂X12 |
1.1/4＂ |
55.5 |
66.5 |
10.29 |
54 |
41 |
707 |
17 |
| S1JFS9-20-24 |
1.5/8＂X12 |
1.1/2＂ |
59.5 |
79.3 |
12.57 |
63.5 |
50 |
1050 |
| S1JFS9-24 |
1.7/8＂X12 |
1.1/2＂ |
62.5 |
79.3 |
12.57 |
63.5 |
50 |
1111 |
14 |
S1JFS9-10-12,S1JFS9-12-16,S1JFS9-16-12,S1JFS9-16-20,S1JFS9-20-24,
