气动接头
首页 > 了解产品 > 气动辅助元件 > 接头类 > 气动接头
S1JO-04,S1JO-05,S1JO-06,S1JO-08,S1JO-10,S1JO-12,S1JO-14,S1JO-20,S1JO-32,锥面密封接头
2015-12-09 20:25390
信息概况
  • 价格：未填
  • 型号： S1JO-04,S1JO-05,S1JO-06,S1JO-08,S1JO-10,S1JO-12,S1JO-14,S1JO-20,S1JO-32
  • 发货：3天内
发送询价
 S1JO-04,S1JO-05,S1JO-06,S1JO-08,S1JO-10,S1JO-12,S1JO-14,S1JO-20,S1JO-32,锥面密封接头

产品技术参数：

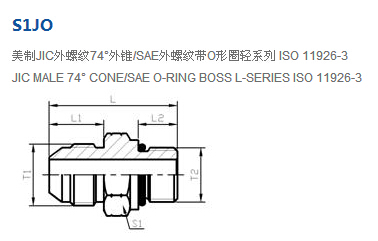

代号                        PART  NO.  螺纹  THREAD 尺寸 DIMENSIONS 重量（g) 工作压力MPa
T1 T2 L1 L2 L S1
S1JO-04 7/16＂X20 7/16＂X20 14 9.14 31.2 14 25 31.5
S1JO-04-05 7/16＂X20 1/2＂X20 14 9.14 31.2 17 31
S1JO-04-06 7/16＂X20 9/16＂X18 14 10 32.7 17 33
S1JO-05 1/2＂X20 1/2＂X20 14 9.14 31.2 17 33
S1JO-05-04 1/2＂X20 7/16＂X20 14 9.14 31 14 26
S1JO-05-06 1/2＂X20 9/16＂X18 14 9.93 33 17 20
S1JO-06 9/16＂X18 9/16＂X18 14.1 9.93 33 17 22
S1JO-06-04 9/16＂X18 7/16＂X20 14.1 9.14 32.2 17 35
S1JO-06-05 9/16＂X18 1/2＂X20 14.1 9 32.2 17 36
S1JO-06-08 9/16＂X18 3/4＂X16 14.1 11.13 35.1 22 61
S1JO-08 3/4＂X16 3/4＂X16 16.7 11.13 37.6 22 75
S1JO-08-04 3/4＂X16 7/16＂X20 16.7 9 34 22 61 31
S1JO-08-06 3/4＂X16 9/16＂X18 16.7 10 36.5 22 67
S1JO-08-10 3/4＂X16 7/8＂X14 16.7 12.7 40.7 27 103 25
S1JO-08-12 3/4＂X16 1.1/16＂X12 16.7 15 44.7 32 153
S1JO-10 7/8＂X14 7/8＂X14 19.3 12.7 43.2 27 114 24
S1JO-10-08 7/8＂X14 3/4＂X16 19.3 11 41.7 24 99
S1JO-10-12 7/8＂X14 1.1/16＂X12 19.3 15 47.2 32 162
S1JO-12 1.1/16＂X12 1.1/16＂X12 21.9 15 50 32 187
S1JO-12-08 1.1/16＂X12 3/4＂X16 21.9 11.13 49.2 27 157
S1JO-12-10 1.1/16＂X12 7/8＂X14 21.9 12.7 47.7 27 147
S1JO-12-14 1.1/16＂X12 1.3/16＂X12 21.9 15.1 49 36 211 20
S1JO-12-16 1.1/16＂X12 1.5/16＂X12 21.9 15.1 50.5 38 237
S1JO-14 1.3/16＂X12 1.3/16＂X12 22.6 15.1 50.5 36 234
S1JO-14-12 1.3/16＂X12 1.1/16＂X12 22.6 15.1 49.5 32 198 21
S1JO-14-16 1.3/16＂X12 1.5/16＂X12 22.6 15.1 51.3 38 310 20
S1JO-16 1.5/16＂X12 1.5/16＂X12 23.1 15.1 51.8 38 267
S1JO-16-12 1.5/16＂X12 1.1/16＂X12 23.1 15.1 50.5 36 237
S1JO-16-14 1.5/16＂X12 1.3/16＂X12 23.1 15.1 52 36 254
S1JO-16-20 1.5/16＂X12 1.5/8＂X12 23.1 15.1 54.1 50 407 16
S1JO-20 1.5/8＂X12 1.5/8＂X12 24.3 15.1 55.1 50 451
S1JO-20-16 1.5/8＂X12 1.5/16＂X12 24.3 15.1 59.1 46 446 17
S1JO-20-24 1.5/8＂X12 1.7/8＂X12 24.3 15.1 54.5 55 494 16
S1JO-24 1.7/8＂X12 1.7/8＂X12 27.5 15.1 60.2 55 577 14
S1JO-24-20 1.7/8＂X12 1.5/8＂X12 27.5 15.1 62 50 548
S1JO-24-32 1.7/8＂X12 2.1/2＂X12 27.5 15.1 62 70 857 12.5
S1JO-32 2.1/2＂X12 2.1/2＂X12 34 15 71 70 1141 10.5
S1JO-04-05,S1JO-04-06,S1JO-05-04,S1JO-05-06,S1JO-06-04,S1JO-06-05,S1JO-06-08,
S1JO-08-04,S1JO-08-06,S1JO-08-10,S1JO-08-12,S1JO-10-08,S1JO-10-12,S1JO-12-08,
S1JO-12-10,S1JO-12-14,S1JO-12-16,S1JO-14-12,S1JO-14-16,S1JO-16,S1JO-16-12,
S1JO-16-14,S1JO-16-20,S1JO-20-16,S1JO-20-24,S1JO-24,S1JO-24-20,S1JO-24-32,
