气动接头
首页 > 了解产品 > 气动辅助元件 > 接头类 > 气动接头
S1JO9-04OG,S1JO9-05OG,S1JO9-06OG,S1JO9-08OG,S1JO9-12OG,S1JO9-10OG,S1JO9-24OG,S1JO9-32OG,锥面密封接头
2015-12-09 20:14309
信息概况
  • 价格：未填
  • 型号： S1JO9-04OG,S1JO9-05OG,S1JO9-06OG,S1JO9-08OG,S1JO9-12OG,S1JO9-10OG,S1JO9-24OG,S1JO9-32OG
  • 发货：3天内
发送询价

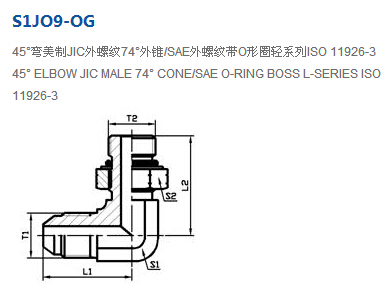

 S1JO9-04OG,S1JO9-05OG,S1JO9-06OG,S1JO9-08OG,S1JO9-12OG,S1JO9-10OG,S1JO9-24OG,S1JO9-32OG,锥面密封接头

产品技术参数：

 代号                        PART  NO. 螺纹  THREAD 尺寸 DIMENSIONS 重量（g) 工作压力MPa
T1 T2 L1 L2 S1 S2
S1JO9-04OG 7/16＂X20 7/16＂X20 22.6 26.2 11 17 33 31.5
S1JO9-04-05OG 7/16＂X20 1/2＂X20 24.1 28.7 14 17 40
S1JO9-04-06OG 7/16＂X20 9/16＂X18 24.1 29.3 14 22 44
S1JO9-05-04OG 1/2＂X20 7/16＂X20 24.1 28.7 14 17 39
S1JO9-05OG 1/2＂X20 1/2＂X20 24.1 28.7 14 19 42
S1JO9-05-06OG 1/2＂X20 9/16＂X18 24.5 31.8 14 19 50
S1JO9-06-04OG 9/16＂X18 7/16＂X20 26.9 31.2 14 17 46
S1JO9-06-05OG 9/16＂X18 1/2＂X20 26.9 31.2 14 17 50
S1JO9-06OG 9/16＂X18 9/16＂X18 26.9 31.8 14 19 56
S1JO9-06-08OG 9/16＂X18 3/4＂X16 29 36.8 19 24 92
S1JO9-08-04OG 3/4＂X16 7/16＂X18 32 33 19 17 78
S1JO9-08-06OG 3/4＂X16 9/16＂X18 32 33.5 19 19 87
S1JO9-08OG 3/4＂X16 3/4＂X16 31.8 36.8 19 24 120 31
S1JO9-08-10OG 3/4＂X16 7/8＂X14 34 43.5 22 27 153 25
S1JO9-08-12OG 3/4＂X16 1.1/16＂X12 36.5 49.5 27 32 218
S1JO9-10-08OG 7/8＂X14 3/4＂X16 38 40 22 27 152 24
S1JO9-10OG 7/8＂X14 7/8＂X14 36.8 43.2 22 27 173
S1JO9-10-12OG 7/8＂X14 1.1/16＂X12 41 51 27 32 247
S1JO9-12-08OG 1.1/16＂X12 3/4＂X16 42.2 44 27 24 208
S1JO9-12-10OG 1.1/16＂X12 7/8＂X14 42.2 47 27 27 232
S1JO9-12OG 1.1/16＂X12 1.1/16＂X12 42.2 49.3 27 32 284
S1JO9-12-16OG 1.1/16＂X12 1.5/16＂X12 47.8 54.5 33 41 387 20
S1JO9-14OG 1.3/16＂X12 1.3/16＂X12 45.7 51 30 36 370
S1JO9-14-16OG 1.3/16＂X12 1.5/16＂X12 45.7 54.5 33 41 414 16
S1JO9-16-12OG 1.5/16＂X12 1.1/16＂X12 45.7 54.5 33 32 370 21
S1JO9-16-14OG 1.5/16＂X12 1.3/16＂X12 46 56 33 36 416 20
S1JO9-16OG 1.5/16＂X12 1.5/16＂X12 46 52.1 33 41 430
S1JO9-16-20OG 1.5/16＂X12 1.5/8＂X12 52.3 59 41 50 603 16
S1JO9-20-16OG 1.5/8＂X12 1.5/16＂X12 52.3 57.2 41 41 582 17
S1JO9-20OG 1.5/8＂X12 1.5/8＂X12 52.3 57.2 41 50 694 16
S1JO9-20-24OG 1.5/8＂X12 1.7/8＂X12 56 60.7 48 55 834
S1JO9-24OG 1.7/8＂X12 1.7/8＂X12 59.2 60.7 48 55 920 14
S1JO9-32OG 2.1/2＂X12 2.1/2＂X12 77.7 73.4 63 70 2034 10.5
S1JO9-04-05OG,S1JO9-04-06OG,S1JO9-05-04OG,S1JO9-05-06OG,S1JO9-06-04OG,S1JO9-06-05OG,
S1JO9-06-08OG,S1JO9-08-04OG,S1JO9-08-06OG,S1JO9-08-10OG,S1JO9-08-12OG,S1JO9-10-08OG,
S1JO9-10-12OG,S1JO9-12-08OG,S1JO9-12-10OG,S1JO9-12-16OG,S1JO9-14OG,S1JO9-14-16OG,
S1JO9-16-12OG,S1JO9-16-14OG,S1JO9-16OG,S1JO9-16-20OG,S1JO9-20-16OG,S1JO9-20OG,S1JO9-20-24OG,
