S1JH-04-10,S1JH-05-12,S1JH-06-14,S1JH-10-18,S1JH-16-33,S1JH-20-42,S1JH-24-48,锥面密封接头

2015-12-09 19:56390

信息概况

价格：未填
型号： S1JH-04-10,S1JH-05-12,S1JH-06-14,S1JH-10-18,S1JH-16-33,S1JH-20-42,S1JH-24-48
发货：3天内

S1JH-04-10,S1JH-05-12,S1JH-06-14,S1JH-10-18,S1JH-16-33,S1JH-20-42,S1JH-24-48,锥面密封接头

产品技术参数：

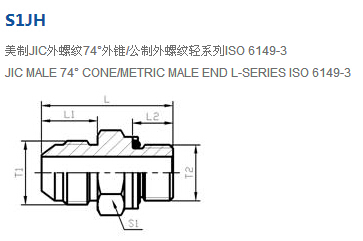

代号 PART NO.	螺纹 THREAD		尺寸 DIMENSIONS				重量（g)	工作压力MPa
代号 PART NO.	T1	T2	L1	L2	L	S1	重量（g)	工作压力MPa
S1JH-04-10	7/16＂X20	M10X1	14	8.5	31	17	21	34.5
S1JH-05-12	1/2＂X20	M12X1.5	14	11	33.5	19	30
S1JH-06-14	9/16＂X18	M14X1.5	14.1	11	33.5	19	36
S1JH-06-16	9/16＂X18	M16X1.5	14.1	11.5	35.1	22	52	31.5
S1JH-08-16	3/4＂X16	M16X1.5	16.7	11.5	37.6	22	67
S1JH-08-18	3/4＂X16	M18X1.5	16.7	12.5	39.1	24	74
S1JH-10-18	7/8＂X14	M18X1.5	19.3	12.5	41.7	24	88
S1JH-10-22	7/8＂X14	M22X1.5	19.3	13	42.9	27	108
S1JH-12-22	1.1/16＂X12	M22X1.5	21.9	13	45.5	27	160
S1JH-12-27	1.1/16＂X12	M27X2	21.9	16	49	32	180	20
S1JH-16-27	1.5/16＂X12	M27X2	23.1	16	50.5	36	247
S1JH-16-33	1.5/16＂X12	M33X2	23.1	16	51.6	41	285
S1JH-20-42	1.5/8＂X12	M42X2	24.3	16	54.9	50	488	17
S1JH-24-48	1.7/8＂X12	M48X2	27.5	17.5	59.4	55	605	14

注：需配挡圈请在代号后加“DQ”，如S1JH-24-48DQ。 S1JH-06-16,S1JH-08-16,S1JH-08-18,S1JH-10-22,S1JH-12-22,S1JH-12-27,S1JH-16-27,
