S1JH4-04-10OG,S1JH4-05-12OG,S1JH4-06-16OG,S1JH4-10-16OG,S1JH4-20-42OG,锥面密封接头

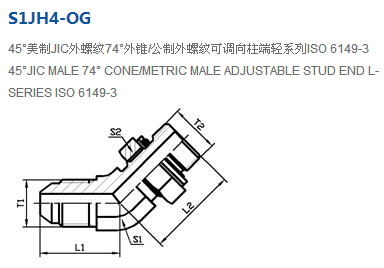

产品技术参数：
| 代号 PART NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
重量（g) |
工作压力MPa |
| T1 |
T2 |
L1 |
L2 |
S1 |
S2 |
| S1JH4-04-10OG |
7/16＂X20 |
M10X1 |
21.5 |
23.5 |
11 |
14 |
26 |
31.5 |
| S1JH4-04-12OG |
7/16＂X20 |
M12X1.5 |
21.5 |
27.5 |
11 |
17 |
36 |
| S1JH4-04-14OG |
7/16＂X20 |
M14X1.5 |
22.3 |
28.3 |
14 |
19 |
40 |
| S1JH4-05-12OG |
1/2＂X20 |
M12X1.5 |
22.3 |
28.3 |
14 |
17 |
38 |
| S1JH4-05-14OG |
1/2＂X20 |
M14X1.5 |
22.3 |
28.3 |
14 |
19 |
44 |
| S1JH4-06-14OG |
9/16＂X18 |
M14X1.5 |
22.3 |
28.3 |
14 |
19 |
47 |
| S1JH4-06-16OG |
9/16＂X18 |
M16X1.5 |
22.3 |
29 |
16 |
22 |
58 |
25 |
| S1JH4-08-16OG |
3/4＂X16 |
M16X1.5 |
26.8 |
30 |
19 |
22 |
79 |
| S1JH4-08-18OG |
3/4＂X16 |
M18X1.5 |
26.8 |
31 |
19 |
24 |
93 |
| S1JH4-10-16OG |
7/8＂X14 |
M16X1.5 |
31 |
31 |
22 |
22 |
106 |
24 |
| S1JH4-10-18OG |
7/8＂X14 |
M18X1.5 |
31 |
32 |
22 |
24 |
115 |
| S1JH4-10-22OG |
7/8＂X14 |
M22X1.5 |
31 |
33 |
22 |
27 |
136 |
| S1JH4-12-22OG |
1.1/16＂X12 |
M22X1.5 |
35.5 |
34.5 |
27 |
27 |
182 |
| S1JH4-12-27OG |
1.1/16＂X12 |
M27X2 |
32.5 |
39.5 |
27 |
32 |
223 |
16 |
| S1JH4-16-27OG |
1.5/16＂X12 |
M27X2 |
38.5 |
41 |
33 |
32 |
296 |
| S1JH4-16-33OG |
1.5/16＂X12 |
M33X2 |
38.5 |
41.5 |
33 |
41 |
345 |
| S1JH4-20-42OG |
1.5/8＂X12 |
M42X2 |
43 |
45 |
41 |
50 |
575 |
| S1JH4-24-48OG |
1.7/8＂X12 |
M48X2 |
49 |
49.5 |
48 |
55 |
766 |
14 |
