气动接头

S1JG4-04OG,S1JG4-06OG,S1JG4-08OG,S1JG4-10OG,S1JG4-12OG,S1JG4-20OG,S1JG4-24OG

2015-12-09 18:07412

信息概况

价格：未填
型号： S1JG4-04OG,S1JG4-06OG,S1JG4-08OG,S1JG4-10OG,S1JG4-12OG,S1JG4-20OG,S1JG4-24OG
发货：3天内

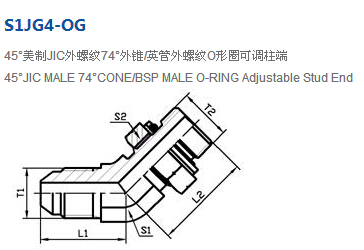

S1JG4-04OG,S1JG4-06OG,S1JG4-08OG,S1JG4-10OG,S1JG4-12OG,S1JG4-20OG,S1JG4-24OG,锥面密封接头

产品技术参数：

代号 PART NO.	螺纹 THREAD		尺寸 DIMENSIONS				重量（g)	工作压力MPa
代号 PART NO.	T1	T2	L1	L2	S1	S2	重量（g)	工作压力MPa
S1JG4-04OG	7/16＂X20	G1/4＂X19	21	28	14	19	39	31.5
S1JG4-05-04OG	1/2＂X20	G1/4＂X19	21	28	14	19	42
S1JG4-06-04OG	9/16＂X18	G1/4＂X19	22	28	14	19	43
S1JG4-06OG	9/16＂X18	G3/8＂X19	23	32	19	22	68	25
S1JG4-08-06OG	3/4＂X16	G3/8＂X19	25.8	32	19	22	90
S1JG4-08OG	3/4＂X16	G1/2＂X14	27.8	36	22	27	128
S1JG4-10-08OG	7/8＂X14	G1/2＂X14	29.5	38	22	27	148	24
S1JG4-10OG	7/8＂X14	G5/8＂X14	29.5	38	22	30	153	-
S1JG4-12-10OG	1.1/16＂X12	G5/8＂X14	34	38.5	27	30	196	-
S1JG4-12-16OG	1.1/16＂X12	G1＂X11	37.5	44	33	41	308	20
S1JG4-12OG	1.1/16＂X12	G3/4＂X14	32.5	42	27	32	224	16
S1JG4-16-12OG	1.5/16＂X12	G3/4＂X14	38	44	33	32	296
S1JG4-16OG	1.5/16＂X12	G1＂X11	38	44	33	41	358
S1JG4-20OG	1.5/8＂X12	G1.1/4＂X11	43	47.5	41	50	589
S1JG4-24OG	1.7/8＂X12	G1.1/2＂X11	49	51.5	48	55	776	14

S1JG4-05-04OG,S1JG4-06-04OG,S1JG4-08-06OG,S1JG4-10-08OG,S1JG4-12-10OG,S1JG4-12-16OG,
S1JG4-16-12OG,S1JG4-16OG,
