S1JG9-04OG,S1JG9-05-08OG,S1JG9-08OG,S1JG9-12OG,S1JG9-16OG,S1JG9-20OG,S1JG9-10-06OG,锥面密封接头
2015-12-09 18:05386
信息概况
  • 价格：未填
  • 型号： S1JG9-04OG,S1JG9-05-08OG,S1JG9-08OG,S1JG9-12OG,S1JG9-16OG,S1JG9-20OG,S1JG9-10-06OG
  • 发货：3天内
发送询价
 S1JG9-04OG,S1JG9-05-08OG,S1JG9-08OG,S1JG9-12OG,S1JG9-16OG,S1JG9-20OG,S1JG9-10-06OG,锥面密封接头

产品技术参数：

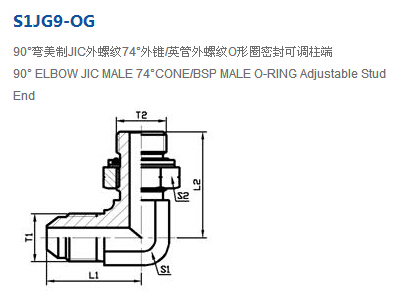

代号                         PART  NO. 螺纹 THREAD 尺寸 DIMENSIONS 重量（g) 工作压力MPa
T1 T2 L1 L2 S1 S2
S1JG9-04-02OG 7/16＂X20 G1/8＂X28 22.6 26.2 11 14 28 31.5
S1JG9-04OG 7/16＂X20 G1/4＂X19 22.6 31.8 14 19 46
S1JG9-05-02OG 1/2＂X20 G1/8＂X28 24.1 27.7 14 14 33
S1JG9-05-06OG 1/2＂X20 G1/4＂X19 26.6 31.8 14 19 50
S1JG9-05-08OG 1/2＂X20 G3/8＂X19 28.5 36.8 19 22 75 25
S1JG9-06-04OG 9/16＂X18 G1/4＂X19 26.9 31.8 14 19 50 31.5
S1JG9-06-08OG 9/16＂X18 G3/8＂X19 29 36.8 19 22 80 25
S1JG9-08-04OG 3/4＂X16 G1/4＂X19 31.8 36.8 19 27 88 31.5
S1JG9-08OG 3/4＂X16 G3/8＂X19 31.8 36.8 19 22 100 25
S1JG9-08-06OG 3/4＂X16 G1/2＂X14 33.8 43.2 22 27 155
S1JG9-10-06OG 7/8＂X14 G3/8＂X19 36.8 37.1 22 36 125
S1JG9-10-08OG 7/8＂X14 G1/2＂X14 36.8 43.2 22 27 158
S1JG9-10-12OG 7/8＂X14 G3/4＂X14 39.2 49.3 27 36 229 16
S1JG9-12OG 1.1/16＂X12 G1/2＂X14 42.2 49.3 27 27 196 25
S1JG9-12-08OG 1.1/16＂X12 G3/4＂X14 42.2 49.3 27 36 275 16
S1JG9-12-16OG 1.1/16＂X12 G1＂X11 44.7 52.1 33 41 365 16
S1JG9-16OG 1.5/16＂X12 G3/4＂X14 46 48.2 33 36 342
S1JG9-16-12OG 1.5/16＂X12 G1＂X11 46 52.1 33 41 428
S1JG9-20OG 1.5/8＂X12 G1＂X11 52.3 57.2 41 41 580
S1JG9-20-16OG 1.5/8＂X12 G1.1/4＂X11 52.3 57.2 41 50 712
S1JG9-24-16OG 1.7/8＂X12 G1.1/4＂X11 59.2 60.7 48 50 962 14
S1JG9-24-20OG 1.7/8＂X12 G1.1/2＂X11 59.2 60.7 48 50 926 10
S1JG9-04-02OG,S1JG9-05-02OG,S1JG9-05-06OG,S1JG9-06-04OG,S1JG9-06-08OG,S1JG9-08-04OG,
S1JG9-08-06OG,S1JG9-10-08OG,S1JG9-10-12OG,S1JG9-12-08OG,S1JG9-12-16OG,S1JG9-16-12OG,
S1JG9-20-16OG,S1JG9-24-16OG,S1JG9-24-20OG,
