S1ST4-02SP,S1ST4-04SP,S1ST4-06SP,S1ST4-08SP,S1ST4-12SP,S1ST4-16SP,S1ST4-24SP,S1ST4-32SP,锥面密封接头
2015-12-08 21:06317
信息概况
  • 价格：未填
  • 型号： S1ST4-02SP,S1ST4-04SP,S1ST4-06SP,S1ST4-08SP,S1ST4-12SP,S1ST4-16SP,S1ST4-24SP,S1ST4-32Sp
  • 发货：3天内
发送询价
 S1ST4-02SP,S1ST4-04SP,S1ST4-06SP,S1ST4-08SP,S1ST4-12SP,S1ST4-16SP,S1ST4-24SP,S1ST4-32SP,锥面密封接头

产品技术参数：

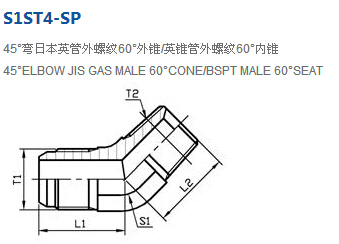

代号         RAPT  NO. 螺纹 THREAD 尺寸 DIMENSIONS
T1 T2 L1 L2 S1
S1ST4-02SP G1/8＂X28 R1/8＂X28 19 17 11
S1ST4-04SP G1/4＂X19 R1/4＂X19 22 19 14
S1ST4-06SP G3/8＂X19 R3/8＂X19 25 22 16
S1ST4-08SP G1/2＂X14 R1/2＂X14 28 26 22
S1ST4-12SP G3/4＂X14 R3/4＂X14 32 30 27
S1ST4-16SP G1＂X11 R1＂X11 36 34 33
S1ST4-20SP G1.1/4＂X11 R1.1/4＂X11 42 40 41
S1ST4-24SP G1.1/2＂X11 R1.1/2＂X11 43 41 48
S1ST4-32SP G2＂X11 R2＂X11 54 50 63
S1ST4-20SP,
