S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,锥面密封接头
2015-12-08 21:05559
信息概况
  • 价格：未填
  • 型号： S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP
  • 发货：3天内
发送询价
 S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,锥面密封接头

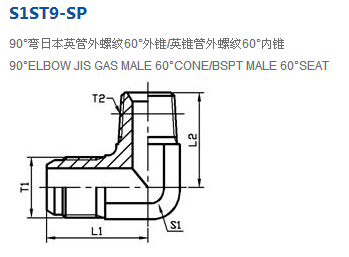

产品技术参数：

代号         RAPT  NO. 螺纹 THREAD 尺寸 DIMENSIONS
T1 T2 L1 L2 S1
S1ST9-02SP G1/8＂X28 R1/8＂X28 21.8 21 11
S1ST9-04SP G1/4＂X19 R1/4＂X19 25 26 14
S1ST9-06SP G3/8＂X19 R3/8＂X19 28 30 16
S1ST9-08SP G1/2＂X14 R1/2＂X14 32 36 22
S1ST9-12SP G3/4＂X14 R3/4＂X14 37 43 27
S1ST9-16SP G1＂X11 R1＂X11 42 50 33
S1ST9-20SP G1.1/4＂X11 R1.1/4＂X11 50 58 41
S1ST9-24SP G1.1/2＂X11 R1.1/2＂X11 52 63 48
S1ST9-32SP G2＂X11 R2＂X11 63 75 63
S1ST9-16SP,
