S2B-04,S2B-06,S2B-08,S2B-12,S2B-16,S2B-20,S2B-24,S2B-32,S2B-04-06,锥面密封接头
2015-12-08 20:58338
信息概况
  • 价格：未填
  • 型号： S2B-04,S2B-06,S2B-08,S2B-12,S2B-16,S2B-20,S2B-24,S2B-32,S2B-04-06
  • 发货：3天内
发送询价
 S2B-04,S2B-06,S2B-08,S2B-12,S2B-16,S2B-20,S2B-24,S2B-32,S2B-04-06,锥面密封接头

产品技术参数：

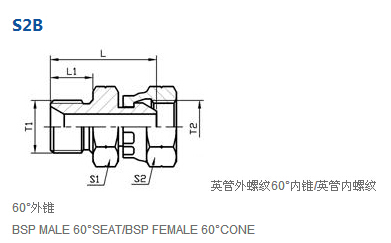

代号          RAPT  NO. 螺纹 THREAD 尺寸 DIMENSIONS
T1 T2 L1 L S1 S2
S2B-04 G1/4＂X19 G1/4＂X19 12 29 19 19
S2B-04-06 G1/4＂X19 G3/8＂X19 12 30.5 19 22
S2B-04-08 G1/4＂X19 G1/2＂X14 12 32 19 27
S2B-06 G3/8＂X19 G3/8＂X19 13.5 34 22 22
S2B-06-04 G3/8＂X19 G1/4＂X19 13.5 32.5 22 19
S2B-06-08 G3/8＂X19 G1/2＂X14 13.5 35.5 22 27
S2B-08 G1/2＂X14 G1/2＂X14 16 40 27 27
S2B-08-06 G1/2＂X14 G3/8＂X19 16 38.5 27 22
S2B-08-12 G1/2＂X14 G3/4＂X14 16 41 27 32
S2B-12 G3/4＂X14 G3/4＂X14 18.5 44.5 32 32
S2B-12-08 G3/4＂X14 G1/2＂X14 18.5 43.5 32 27
S2B-12-16 G3/4＂X14 G1＂X11 18.5 46 32 41
S2B-16 G1＂X11 G1＂X11 20.5 50 41 41
S2B-16-12 G1＂X11 G3/4＂X14 20.5 49 41 32
S2B-16-20 G1＂X11 G1.1/4＂X11 20.5 53 41 50
S2B-20 G1.1/4＂X11 G1.1/4＂X11 20.5 55 50 50
S2B-20-16 G1.1/4＂X11 G1＂X11 20.5 52 50 41
S2B-20-24 G1.1/4＂X11 G1.1/2＂X11 20.5 55.5 50 55
S2B-24 G1.1/2＂X11 G1.1/2＂X11 23 58 55 55
S2B-32-24 G2＂X11 G1.1/2＂X11 25.5 62.5 70 55
S2B-32 G2＂X11 G2＂X11 25.5 63.5 70 70
S2B-04-08,S2B-06-04,S2B-06-08,S2B-08-06,S2B-08-12,S2B-12-08,S2B-12-16,S2B-16-12,
S2B-16-20,S2B-20-16,S2B-20-24,S2B-32-24,
