S2B4-04,S2B4-06,S2B4-08,S2B4-10,S2B4-16,S2B4-12,S2B4-20,S2B4-24,S2B4-32,锥面密封接头
2015-12-08 20:55372
信息概况
  • 价格：未填
  • 型号： S2B4-04,S2B4-06,S2B4-08,S2B4-10,S2B4-16,S2B4-12,S2B4-20,S2B4-24,S2B4-32
  • 发货：3天内
发送询价
 S2B4-04,S2B4-06,S2B4-08,S2B4-10,S2B4-16,S2B4-12,S2B4-20,S2B4-24,S2B4-32,锥面密封接头

产品技术参数：

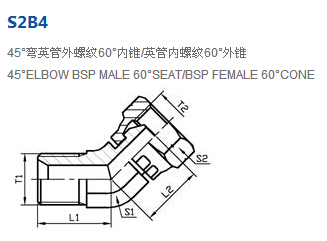

代号          RAPT  NO. 螺纹 THREAD 尺寸 DIMENSIONS
T1 T2 L1 L2 S1 S2
S2B4-04 G1/4＂X19 G1/4＂X19 21 15.5 14 19
S2B4-04-06 G1/4＂X19 G3/8＂X19 21 18.5 14 22
S2B4-06 G3/8＂X19 G3/8＂X19 24 18.5 16 22
S2B4-06-04 G3/8＂X19 G1/4＂X19 24 15.5 16 19
S2B4-08 G1/2＂X14 G1/2＂X14 27 22 22 27
S2B4-08-06 G1/2＂X14 G3/8＂X19 27 20.5 22 22
S2B4-10 G5/8＂X14 G5/8＂X14 30 23 22 30
S2B4-10-08 G5/8＂X14 G1/2＂X14 30 22 22 27
S2B4-12 G3/4＂X14 G3/4＂X14 32 24.5 27 32
S2B4-16 G1＂X11 G1＂X11 35 27.5 33 41
S2B4-20 G1.1/4＂X11 G1.1/4＂X11 38.5 34.5 41 50
S2B4-24 G1.1/2＂X11 G1.1/2＂X11 45 37.5 48 55
S2B4-32 G2＂X11 G2＂X11 51 54.3 63 70

S2B4-04-06,S2B4-06-04,S2B4-08-06,S2B4-10-08,
