S1BT9-02SP,S1BT9-04SP,S1BT9-06SP,S1BT9-08SP,S1BT9-12SP,S1BT9-16SP,S1BT9-20SP,S1BT9-32SP,锥面密封接头

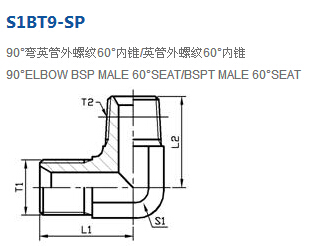

产品技术参数：
| 代号 RAPT NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
| T1 |
T2 |
L1 |
L2 |
S1 |
| S1BT9-02SP |
G1/8＂X28 |
R1/8＂X28 |
20 |
21 |
11 |
| S1BT9-02-04SP |
G1/8＂X28 |
R1/4＂X19 |
22.3 |
25.5 |
14 |
| S1BT9-04SP |
G1/4＂X19 |
R1/4＂X19 |
24.5 |
25.5 |
14 |
| S1BT9-04-02SP |
G1/4＂X19 |
R1/8＂X28 |
25 |
23.5 |
14 |
| S1BT9-04-06SP |
G1/4＂X19 |
R3/8＂X19 |
25 |
28.5 |
16 |
| S1BT9-06SP |
G3/8＂X19 |
R3/8＂X19 |
27.5 |
28.5 |
16 |
| S1BT9-06-04SP |
G3/8＂X19 |
R1/4＂X19 |
27.5 |
26.5 |
16 |
| S1BT9-06-08SP |
G3/8＂X19 |
R1/2＂X14 |
31 |
36 |
22 |
| S1BT9-08SP |
G1/2＂X14 |
R1/2＂X14 |
34.5 |
36 |
22 |
| S1BT9-08-06SP |
G1/2＂X14 |
R3/8＂X19 |
34.5 |
32.5 |
22 |
| S1BT9-08-12SP |
G1/2＂X14 |
R3/4＂X14 |
37.5 |
43.5 |
27 |
| S1BT9-10-08SP |
G5/8＂X14 |
R1/2＂X14 |
35 |
36 |
22 |
| S1BT9-10-12SP |
G5/8＂X14 |
R3/4＂X14 |
39 |
43.5 |
27 |
| S1BT9-12SP |
G3/4＂X14 |
R3/4＂X14 |
40 |
43 |
27 |
| S1BT9-12-08SP |
G3/4＂X14 |
R1/2＂X14 |
40 |
39.5 |
27 |
| S1BT9-12-16SP |
G3/4＂X14 |
R1＂X11 |
43.5 |
50 |
33 |
| S1BT9-16SP |
G1＂X11 |
R1＂X11 |
46 |
50 |
33 |
| S1BT9-16-12SP |
G1＂X11 |
R3/4＂X14 |
46 |
47.5 |
33 |
| S1BT9-16-20SP |
G1＂X11 |
R1.1/4＂X11 |
50.5 |
56.5 |
41 |
| S1BT9-20SP |
G1.1/4＂X11 |
R1.1/4＂X11 |
52 |
59 |
41 |
| S1BT9-20-16SP |
G1.1/4＂X11 |
R1＂X11 |
52 |
56.5 |
41 |
| S1BT9-20-24SP |
G1.1/4＂X11 |
R1.1/2＂X11 |
54.5 |
62.5 |
48 |
| S1BT9-24SP |
G1.1/2＂X11 |
R1.1/2＂X11 |
57.5 |
62 |
48 |
| S1BT9-24-20SP |
G1.1/2＂X11 |
R1.1/4＂X11 |
57.5 |
61 |
48 |
| S1BT9-24-32SP |
G1.1/2＂X11 |
R2＂X11 |
66 |
75 |
63 |
| S1BT9-32SP |
G2＂X11 |
R2＂X11 |
67 |
75 |
63 |
