S5B-02-04,S5B-04,S5B-06,S5B-08,S5B-12,S5B-16,S5B-20,S5B-24,S5B-32,锥面密封接头
2015-12-08 20:33419
信息概况
  • 价格：未填
  • 型号： S5B-02-04,S5B-04,S5B-06,S5B-08,S5B-12,S5B-16,S5B-20,S5B-24,S5B-32
  • 发货：3天内
发送询价
 S5B-02-04,S5B-04,S5B-06,S5B-08,S5B-12,S5B-16,S5B-20,S5B-24,S5B-32,锥面密封接头

产品技术参数：

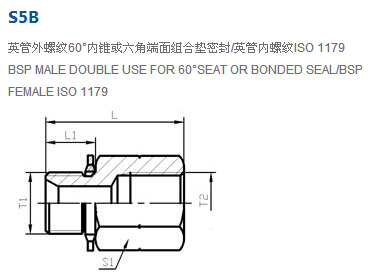

代号           RAPT  NO. 螺纹 THREAD 尺寸 DIMENSIONS
T1 T2 L1 L S1
S5B-02-04 G1/8＂X28 G1/4＂X19 11 29 19
S5B-04-02 G1/4＂X19 G1/8＂X28 12 28 19
S5B-04 G1/4＂X19 G1/4＂X19 12 33 19
S5B-04-06 G1/4＂X19 G3/8＂X19 12 36 22
S5B-06-04 G3/8＂X19 G1/4＂X19 13.5 33.5 22
S5B-06 G3/8＂X19 G3/8＂X19 13.5 37.5 22
S5B-06-08 G3/8＂X19 G1/2＂X14 13.5 42.5 27
S5B-08-06 G1/2＂X14 G3/8＂X19 16 38 27
S5B-08 G1/2＂X14 G1/2＂X14 16 45 27
S5B-08-10 G1/2＂X14 G5/8＂X14 16 46 30
S5B-08-12 G1/2＂X14 G3/4＂X14 16 44.5 36
S5B-10-08 G5/8＂X14 G1/2＂X14 16 41.5 30
S5B-12-08 G3/4＂X14 G1/2＂X14 18.5 44.5 32
S5B-12 G3/4＂X14 G3/4＂X14 18.5 48 36
S5B-12-16 G3/4＂X14 G1＂X11 18.5 53.5 41
S5B-16-12 G1＂X11 G3/4＂X14 20.5 47.5 41
S5B-16 G1＂X11 G1＂X11 20.5 55.5 41
S5B-16-20 G1＂X11 G1.1/4＂X11 20.5 56.5 50
S5B-20-16 G1.1/4＂X11 G1＂X11 20.5 49 50
S5B-20 G1.1/4＂X11 G1.1/4＂X11 20.5 52.5 50
S5B-20-24 G1.1/4＂X11 G1.1/2＂11 20.5 57.5 55
S5B-24 G1.1/2＂11 G1.1/2＂11 23 58 55
S5B-32-24 G2＂X11 G1.1/2＂11 26 59.5 70
S5B-32 G2＂X11 G2＂X11 26 63 70
