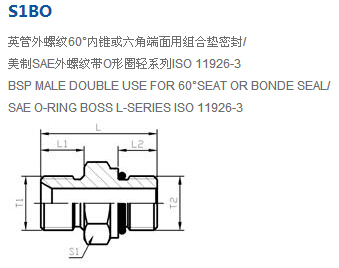

S1BO-04,S1BO-06,S1BO-08,S1BO-10,S1BO-12,S1BO-16,S1BO-20,S1BO-24,锥面密封接头
产品技术参数：
| 代号 RAPT NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
| T1 |
T2 |
L1 |
L2 |
L |
S1 |
| S1BO-04 |
G1/4＂X19 |
7/16＂X20 |
12 |
9.1 |
29.5 |
19 |
| S1BO-04-05 |
G1/4＂X19 |
1/2＂X20 |
12 |
9.1 |
29.5 |
19 |
| S1BO-04-06 |
G1/4＂X19 |
9/16＂X18 |
12 |
9.9 |
32 |
19 |
| S1BO-04-08 |
G1/4＂X19 |
3/4＂X16 |
12 |
11.1 |
31 |
22 |
| S1BO-06 |
G3/8＂X19 |
9/16＂X18 |
13.5 |
9.9 |
33.5 |
22 |
| S1BO-06-04 |
G3/8＂X19 |
7/16＂X20 |
13.5 |
9.1 |
33 |
22 |
| S1BO-06-08 |
G3/8＂X19 |
3/4＂X16 |
13.5 |
11.1 |
36 |
24 |
| S1BO-06-10 |
G3/8＂X19 |
7/8＂X14 |
13.5 |
12.7 |
39.5 |
27 |
| S1BO-08 |
G1/2＂X14 |
3/4＂X16 |
16 |
11.1 |
38 |
27 |
| S1BO-08-06 |
G1/2＂X14 |
9/16＂X18 |
16 |
9.9 |
36 |
27 |
| S1BO-08-10 |
G1/2＂X14 |
7/8＂X14 |
16 |
12.7 |
42 |
27 |
| S1BO-08-12 |
G1/2＂X14 |
1.1/16＂X12 |
16 |
15.1 |
42.5 |
32 |
| S1BO-10 |
G5/8＂X14 |
7/8＂X14 |
17.5 |
12.7 |
43.5 |
30 |
| S1BO-10-08 |
G5/8＂X14 |
3/4＂X16 |
17.5 |
11.1 |
41.5 |
30 |
| S1BO-10-12 |
G5/8＂X14 |
1.1/16＂X12 |
17.5 |
15.1 |
47 |
32 |
| S1BO-12 |
G3/4＂X14 |
1.1/16＂X12 |
18.5 |
15.1 |
48 |
32 |
| S1BO-12-08 |
G3/4＂X14 |
3/4＂X16 |
18.5 |
11.1 |
40.5 |
32 |
| S1BO-12-10 |
G3/4＂X14 |
7/8＂X14 |
18.5 |
12.7 |
45.5 |
32 |
| S1BO-12-14 |
G3/4＂X14 |
1.3/16＂X12 |
18.5 |
15.1 |
48 |
36 |
| S1BO-12-16 |
G3/4＂X14 |
1.5/16＂X12 |
18.5 |
15.1 |
50.7 |
41 |
| S1BO-16 |
G1＂X11 |
1.5/16＂X12 |
20.5 |
15.1 |
52.6 |
41 |
| S1BO-16-10 |
G1＂X11 |
7/8＂X14 |
20.5 |
12.7 |
49.5 |
41 |
| S1BO-16-12 |
G1＂X11 |
1.1/16＂X12 |
20.5 |
15.1 |
52 |
41 |
| S1BO-16-14 |
G1＂X11 |
1.3/16＂X12 |
20.5 |
15.1 |
52 |
41 |
| S1BO-16-20 |
G1＂X11 |
1.5/8＂X12 |
20.5 |
15.1 |
54.7 |
50 |
| S1BO-20 |
G1.1/4＂X11 |
1.5/8＂X12 |
20.5 |
15.1 |
54.7 |
50 |
| S1BO-20-16 |
G1.1/4＂X11 |
1.5/16＂X12 |
20.5 |
15.1 |
54.7 |
50 |
| S1BO-24 |
G1.1/2＂X11 |
1.7/8＂X12 |
23 |
15.1 |
57 |
55 |
S1BO-04-05,S1BO-04-06,S1BO-04-08，S1BO-06-04,S1BO-06-08,S1BO-06-10,S1BO-08-06,
S1BO-08-10,S1BO-08-12,S1BO-10-08,S1BO-10-12,S1BO-12-08,S1BO-12-10,S1BO-12-14,
S1BO-12-16,S1BO-16-10,S1BO-16-12,S1BO-16-14,S1BO-16-20,S1BO-20-16,
