S1BH-02-10,S1BH-04-12,S1BH-06-14,S1BH-08-18,S1BH-12-27,S1BH-20-42,S1BH-24-48,锥面密封接头_气动接头_接头类_气动辅助元件_了解产品

气动接头

S1BH-02-10,S1BH-04-12,S1BH-06-14,S1BH-08-18,S1BH-12-27,S1BH-20-42,S1BH-24-48,锥面密封接头

2015-12-08 12:18476

信息概况

价格：未填
型号： S1BH-02-10,S1BH-04-12,S1BH-06-14,S1BH-08-18,S1BH-12-27,S1BH-20-42,S1BH-24-48
发货：3天内

S1BH-02-10,S1BH-04-12,S1BH-06-14,S1BH-08-18,S1BH-12-27,S1BH-20-42,S1BH-24-48,锥面密封接头

产品技术参数：

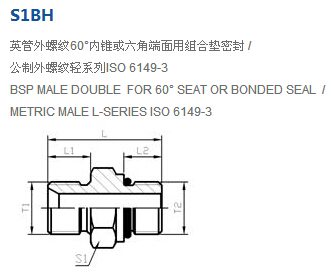

代号 RAPT NO.	螺纹 THREAD		尺寸 DIMENSIONS
代号 RAPT NO.	E	F	L1	L2	S1	L
S1BH-02-10	G1/8＂X28	M10X1	10	8.5	14	25
S1BH-02-12	G1/8＂X28	M12X1.5	10	11	17	28
S1BH-04-12	G1/4＂X19	M12X1.5	12	11	19	30
S1BH-04-14	G1/4＂X19	M14X1.5	12	11	19	31.5
S1BH-04-16	G1/4＂X19	M16X1.5	12	11.5	22	31.5
S1BH-06-14	G3/8＂X19	M14X1.5	13.5	11	22	35
S1BH-06-16	G3/8＂X19	M16X1.5	13.5	11.5	22	33
S1BH-06-18	G3/8＂X19	M18X1.5	13.5	12.5	24	36.5
S1BH-08-18	G1/2＂X14	M18X1.5	16	12.5	27	41
S1BH-08-22	G1/2＂X14	M22X1.5	16	13	27	41.5
S1BH-10-22	G5/8＂X14	M22X1.5	17.5	13	30	43
S1BH-12-22	G3/4＂X14	M22X1.5	18.5	13	32	45
S1BH-12-27	G3/4＂X14	M27X2	18.5	16	32	45.5
S1BH-16-27	G1＂X11	M27X2	20.5	16	41	49
S1BH-16-33	G1＂X11	M33X2	20.5	16	41	49.5
S1BH-20-42	G1.1/4＂X11	M42X2	20.5	16	50	51.5
S1BH-24-48	G1.1/2＂X11	M48X2	23	17.5	55	55.5

注:若需配挡圈请在代号后加“DQ”，如S1BH-24-48DQ。 S1BH-02-12,S1BH-04-14,S1BH-04-16,S1BH-06-16,S1BH-06-18,S1BH-08-22,S1BH-10-22,
S1BH-12-22,S1BH-16-27,S1BH-16-33,
