S1BH9-02-10OG,S1BH9-04-12OG,S1BH9-06-14OG,S1BH9-10-22OG,S1BH9-16-27OG,S1BH9-20-42OG,锥面密封接头

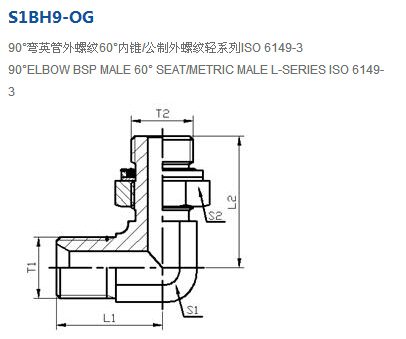

产品技术参数：
| 代号 RAPT NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
| T1 |
T2 |
L1 |
L2 |
S1 |
S2 |
| S1BH9-02-10OG |
G1/8＂X28 |
M10X1 |
17 |
27 |
11 |
14 |
| S1BH9-02-12OG |
G1/8＂X28 |
M12X1.5 |
17 |
27 |
11 |
17 |
| S1BH9-04-12OG |
G1/4＂X19 |
M12X1.5 |
20.3 |
27 |
14 |
17 |
| S1BH9-04-14OG |
G1/4＂X19 |
M14X1.5 |
20.3 |
32 |
14 |
19 |
| S1BH9-04-16OG |
G1/4＂X19 |
M16X1.5 |
20.8 |
35 |
16 |
22 |
| S1BH9-06-14OG |
G3/8＂X19 |
M14X1.5 |
22.3 |
32 |
16 |
19 |
| S1BH9-06-16OG |
G3/8＂X19 |
M16X1.5 |
22.3 |
35 |
16 |
22 |
| S1BH9-06-18OG |
G3/8＂X19 |
M18X1.5 |
23 |
36 |
19 |
24 |
| S1BH9-08-18OG |
G1/2＂X14 |
M18X1.5 |
27.3 |
36 |
22 |
24 |
| S1BH9-08-22OG |
G1/2＂X14 |
M22X1.5 |
27.3 |
41 |
22 |
27 |
| S1BH9-10-22OG |
G5/8＂X14 |
M22X1.5 |
27.8 |
41 |
22 |
27 |
| S1BH9-12-22OG |
G3/4＂X14 |
M22X1.5 |
31 |
41 |
27 |
27 |
| S1BH9-12-27OG |
G3/4＂X14 |
M27X2 |
31 |
45 |
27 |
32 |
| S1BH9-16-27OG |
G1＂X11 |
M27X2 |
34.5 |
45 |
33 |
32 |
| S1BH9-16-33OG |
G1＂X11 |
M33X2 |
34.5 |
49 |
33 |
41 |
| S1BH9-20-42OG |
G1.1/4＂X11 |
M42X2 |
39 |
60 |
41 |
50 |
| S1BH9-24-48OG |
G1.1/2＂X11 |
M48X2 |
44 |
68 |
48 |
55 |
S1BH9-02-12OG,S1BH9-04-14OG,S1BH9-04-16OG,S1BH9-06-16OG,S1BH9-06-18OG,S1BH9-08-18OG,
S1BH9-08-22OG,S1BH9-12-22OG,S1BH9-12-27OG,S1BH9-16-33OG,S1BH9-24-48OG,
