S2BJ-04,S2BJ-06,S2BJ-08,S2BJ-10,S2BJ-12,S2BJ-16,S2BJ-20,S2BJ-24,S2BJ-32,S2BJ-02-04,锥面密封接头
2015-12-07 11:51604
信息概况
  • 价格：未填
  • 型号： S2BJ-04,S2BJ-06,S2BJ-08,S2BJ-10,S2BJ-12,S2BJ-16,S2BJ-20,S2BJ-24,S2BJ-32,S2BJ-02-04
  • 发货：3天内
发送询价
 S2BJ-04,S2BJ-06,S2BJ-08,S2BJ-10,S2BJ-12,S2BJ-16,S2BJ-20,S2BJ-24,S2BJ-32,S2BJ-02-04,锥面密封接头

产品技术参数：

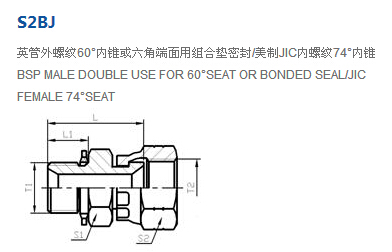

代号          RAPT  NO.     螺纹    THREAD 尺寸  DIMENSIONS
     T1 T2 L1 L S1 S2
S2BJ-02-04 G1/8＂X28 7/16＂X20 10 24 14 14
S2BJ-02-06 G1/8＂X28 9/16＂X18 10 24.5 14 19
S2BJ-04 G1/4＂X19 7/16＂X20 12 26 19 15
S2BJ-04-05 G1/4＂X19 1/2＂X20 12 26.5 19 17
S2BJ-04-06 G1/4＂X19 9/16＂X18 12 27 19 19
S2BJ-04-08 G1/4＂X19 3/4＂X16 12 29 19 24
S2BJ-06 G3/8＂X19 9/16＂X18 13.5 30.5 22 19
S2BJ-06-08 G3/8＂X19 3/4＂X16 13.5 32.5 22 24
S2BJ-06-10 G3/8＂X19 7/8＂X14 13.5 33 22 27
S2BJ-08 G1/2＂X14 3/4＂X16 16 37 27 24
S2BJ-08-06 G1/2＂X14 9/16＂X18 16 35 27 19
S2BJ-08-10 G1/2＂X14 7/8＂X14 16 37.5 27 27
S2BJ-10 G5/8＂X14 7/8＂X14 17.5 37.5 30 27
S2BJ-12 G3/4＂X14 1.1/16＂X12 18.5 42 32 32
S2BJ-12-08 G3/4＂X14 3/4＂X16 18.5 40 32 24
S2BJ-12-10 G3/4＂X14 7/8＂X14 18.5 41 32 27
S2BJ-12-16 G3/4＂X14 1.5/16＂X12 18.5 42 32 41
S2BJ-16 G1＂X11 1.5/16＂X12 20.5 46 41 41
S2BJ-16-20 G1＂X11 1.5/8＂X12 20.5 50 41 50
S2BJ-20 G1.1/4＂X11 1.5/8＂X12 20.5 52 50 50
S2BJ-20-24 G1.1/4＂X11 1.7/8＂X12 20.5 53.5 50 55
S2BJ-24 G1.1/2＂X11 1.7/8＂X12 23 56.5 55 55
S2BJ-32 G2＂X11 2.1/2＂X12 25.5 60 70 75
S2BJ-04-05,S2BJ-02-06,S2BJ-04-06,S2BJ-04-08,S2BJ-06-08,S2BJ-06-10,S2BJ-08-06,
S2BJ-08-10,S2BJ-12-08,S2BJ-12-10,S2BJ-12-16,S2BJ-16-20,S2BJ-20-24,
