S1BN-02,S1BN-04,S1BN-06,S1BN-08,S1BN-12,S1BN-16,S1BN-20,S1BN-32,锥面密封接头

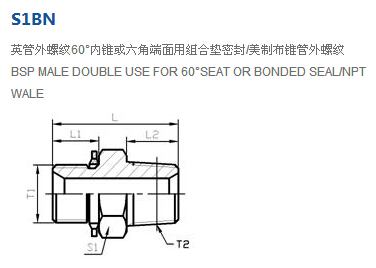

产品技术参数：
| 代号 RAPT NO. |
螺纹 THREAD |
尺寸 DIMENSIONS |
| T1 |
T2 |
L1 |
L2 |
L |
S1 |
| S1BN-02 |
G1/8＂X28 |
NPT1/8＂X27 |
10 |
10.5 |
26 |
14 |
| S1BN-02-04 |
G1/8＂X28 |
NPT1/4＂X18 |
10 |
15 |
31 |
17 |
| S1BN-04 |
G1/4＂X19 |
NPT1/4＂X18 |
12 |
15 |
33 |
19 |
| S1BN-04-02 |
G1/4＂X19 |
NPT1/8＂X27 |
12 |
10.5 |
28 |
19 |
| S1BN-04-06 |
G1/4＂X19 |
NPT3/8＂X18 |
12 |
16 |
34 |
19 |
| S1BN-06 |
G3/8＂X19 |
NPT3/8＂X18 |
13.5 |
16 |
37.5 |
22 |
| S1BN-06-04 |
G3/8＂X19 |
NPT1/4＂X18 |
13.5 |
15 |
36 |
22 |
| S1BN-06-08 |
G3/8＂X19 |
NPT1/2＂X14 |
13.5 |
19.5 |
41 |
22 |
| S1BN-08 |
G1/2＂X14 |
NPT1/2＂X14 |
16 |
19.5 |
45.5 |
27 |
| S1BN-08-06 |
G1/2＂X14 |
NPT3/8＂X18 |
16 |
16 |
42 |
27 |
| S1BN-08-12 |
G1/2＂X14 |
NPT3/4＂X14 |
16 |
19.5 |
45.5 |
30 |
| S1BN-12 |
G3/4＂X14 |
NPT3/4＂X14 |
18.5 |
19.5 |
49 |
32 |
| S1BN-12-08 |
G3/4＂X14 |
NPT1/2＂X14 |
18.5 |
19.5 |
49 |
32 |
| S1BN-12-16 |
G3/4＂X14 |
NPT1＂X11.5 |
18.5 |
25.5 |
55 |
36 |
| S1BN-16 |
G1＂X11 |
NPT1＂X11.5 |
20.5 |
25.5 |
59 |
41 |
| S1BN-16-12 |
G1＂X11 |
NPT3/4＂X14 |
20.5 |
19.5 |
53 |
41 |
| S1BN-20 |
G1.1/4＂X11 |
NPT1.1/4＂X11.5 |
20.5 |
26.5 |
62 |
50 |
| S1BN-20-16 |
G1.1/4＂X11 |
NPT1＂X11.5 |
20.5 |
25.5 |
61 |
50 |
| S1BN-20-24 |
G1.1/4＂X11 |
NPT1.1/2＂X11.5 |
20.5 |
27.5 |
63 |
50 |
| S1BN-24 |
G1.1/2＂X11 |
NPT1.1/2＂X11.5 |
23 |
27.5 |
65.5 |
55 |
| S1BN-24-20 |
G1.1/2＂X11 |
NPT1.1/4＂X11.5 |
23 |
26.5 |
64.5 |
55 |
| S1BN-24-32 |
G1.1/2＂X11 |
NPT2＂X11.5 |
23 |
27.5 |
67.5 |
65 |
| S1BN-32 |
G2＂X11 |
NPT2＂X11.5 |
25.5 |
27.5 |
70 |
70 |
| S1BN-32-20 |
G2＂X11 |
NPT1.1/4＂X11.5 |
25.5 |
26.5 |
69 |
70 |
| S1BN-32-24 |
G2＂X11 |
NPT1.1/2＂X11.5 |
25.5 |
27.5 |
70 |
70 |
S1BN-02-04,S1BN-04-02,S1BN-04-06,S1BN-06-04,S1BN-06-08,S1BN-08-06,S1BN-08-12,
S1BN-12-08,S1BN-12-16,S1BN-16-12,S1BN-20-16,S1BN-20-24,S1BN-24,S1BN-24-20,
S1BN-24-32,S1BN-32-20,S1BN-32-24,
