产品详情

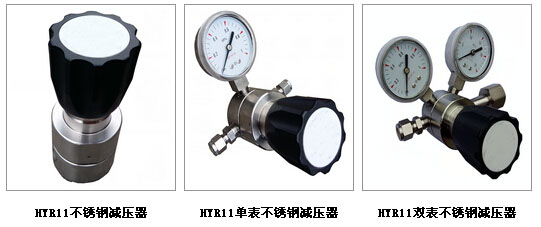

HYR11系列不锈钢减压器，单级式膜片减压结构，不锈钢膜片压力传输，输出压力稳定，适用于纯净气体、标准气体、腐蚀性气体，液体等。

设计特点：
单级式减压结构
母体与膜片采用硬密封形式
母体螺纹：1/4" NPT（F）
内部结构易吹扫
内设过滤网
可采用面板式或墙式安装

适用范围：

实验室
气相色谱仪
气体激光器
气体汇流排
石油化学工业
测试设备

特性参数：

最大输入压力： 500 , 3000 psig
输出压力： 0～25， 0～50，0～100,
0～250，0～500 psig
安全测试压力： 1.5 倍的最大输入压力
适用温度: -40°F ~+165°F(-40℃至+74℃)
泄漏率:2×10-8 atm cc/sec He
Cv 值:0.08

材质：

母体:316L , Brass
上盖:316L , Brass
膜片:316L
过滤网:316L(10μm)
阀座:PCTFE,PTFE,Vespel
弹簧:316L
阀芯顶杆:316L

重量：0.9KG
