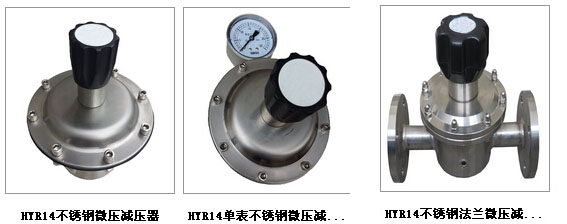

HYR14LAGG00,HYR14LBGG00,HYR14SAGG00,HYR14SBGG00,HYR14LAGG00,不锈钢微压减压器
产品详情
HYR14系列不锈钢微压减压器，单级式膜片结构，橡胶膜片压力传输，专门为微压使用要求设计，稳定入口压力，主要应用于中等流量气系统和液体（有适用于液体结构）。
设计特点：
单级式减压结构
母体与膜片采用硬密封形式
母体螺纹：进出气接口1/2" NPT（F），
压力表，安全阀接口1/4〞NPT（F）
内设过滤网
可采用面板式或墙式安装
适用范围：
实验室
气体吹扫系统
腐蚀性气体、特种气体
气体汇流排
测试设备
特性参数：
最大输入压力:50，100 Psig
输出压力:0～10，0～25，0～50， 0～100KPa
安全测试压力:1.5 倍的最大输入压力
适用温度:-40°F 至＋446°F (-40℃ 至＋230℃)
内泄漏率:2×10-8 atm cc/sec He
C v 值:1.1
材质：
母 体:316L,
上 盖:316L,
膜 片:NBR, VITON
过滤网:316L(10μm)
阀 座:PCTFE,PTFE ,NBR
弹 簧:316L
阀芯顶杆:316L
重量：3.4KG
HYR14LAGG00,HYR14LAGG01,HYR14LAGG02,HYR14LAGG03,HYR14LAGG04,HYR14LAGG05,HYR14LAGG12,HYR14LAGG13,
HYR14LAGW00,HYR14LAGW01,HYR14LAGW02,HYR14LAGW03,HYR14LAGW04,HYR14LAGW05,HYR14LAGW12,HYR14LAGW13,
HYR14LAHG00,HYR14LAHG01,HYR14LAHG02,HYR14LAHG03,HYR14LAHG04,HYR14LAHG05,HYR14LAHG12,HYR14LAHG13,
HYR14LAHW00,HYR14LAHW01,HYR14LAHW02,HYR14LAHW03,HYR14LAHW04,HYR14LAHW05,HYR14LAHW12,HYR14LAHW13,
HYR14LAKG00,HYR14LAKG01,HYR14LAKG02,HYR14LAKG03,HYR14LAKG04,HYR14LAKG05,HYR14LAKG12,HYR14LAKG13,
HYR14LAKW00,HYR14LAKW01,HYR14LAKW02,HYR14LAKW03,HYR14LAKW04,HYR14LAKW05,HYR14LAKW12,HYR14LAKW13,
HYR14LALG00,HYR14LALG01,HYR14LALG02,HYR14LALG03,HYR14LALG04,HYR14LALG05,HYR14LALG12,HYR14LALG13,
HYR14LALW00,HYR14LALW01,HYR14LALW02,HYR14LALW03,HYR14LALW04,HYR14LALW05,HYR14LALW12,HYR14LALW13,
HYR14LBGG00,HYR14LBGG01,HYR14LBGG02,HYR14LBGG03,HYR14LBGG04,HYR14LBGG05,HYR14LBGG12,HYR14LBGG13,
HYR14LBGW00,HYR14LBGW01,HYR14LBGW02,HYR14LBGW03,HYR14LBGW04,HYR14LBGW05,HYR14LBGW12,HYR14LBGW13,
HYR14LBHG00,HYR14LBHG01,HYR14LBHG02,HYR14LBHG03,HYR14LBHG04,HYR14LBHG05,HYR14LBHG12,HYR14LBHG13,
HYR14LBHW00,HYR14LBHW01,HYR14LBHW02,HYR14LBHW03,HYR14LBHW04,HYR14LBHW05,HYR14LBHW12,HYR14LBHW13,
HYR14LBKG00,HYR14LBKG01,HYR14LBKG02,HYR14LBKG03,HYR14LBKG04,HYR14LBKG05,HYR14LBKG12,HYR14LBKG13,
HYR14LBKW00,HYR14LBKW01,HYR14LBKW02,HYR14LBKW03,HYR14LBKW04,HYR14LBKW05,HYR14LBKW12,HYR14LBKW13,
HYR14LBLG00,HYR14LBLG01,HYR14LBLG02,HYR14LBLG03,HYR14LBLG04,HYR14LBLG05,HYR14LBLG12,HYR14LBLG13,
HYR14LBLW00,HYR14LBLW01,HYR14LBLW02,HYR14LBLW03,HYR14LBLW04,HYR14LBLW05,HYR14LBLW12,HYR14LBLW13,
HYR14SAGG00,HYR14SAGG01,HYR14SAGG02,HYR14SAGG03,HYR14SAGG04,HYR14SAGG05,HYR14SAGG12,HYR14SAGG13,
HYR14SAGW00,HYR14SAGW01,HYR14SAGW02,HYR14SAGW03,HYR14SAGW04,HYR14SAGW05,HYR14SAGW12,HYR14SAGW13,
HYR14SAHG00,HYR14SAHG01,HYR14SAHG02,HYR14SAHG03,HYR14SAHG04,HYR14SAHG05,HYR14SAHG12,HYR14SAHG13,
HYR14SAHW00,HYR14SAHW01,HYR14SAHW02,HYR14SAHW03,HYR14SAHW04,HYR14SAHW05,HYR14SAHW12,HYR14SAHW13,
HYR14SAKG00,HYR14SAKG01,HYR14SAKG02,HYR14SAKG03,HYR14SAKG04,HYR14SAKG05,HYR14SAKG12,HYR14SAKG13,
HYR14SAKW00,HYR14SAKW01,HYR14SAKW02,HYR14SAKW03,HYR14SAKW04,HYR14SAKW05,HYR14SAKW12,HYR14SAKW13,
HYR14SALG00,HYR14SALG01,HYR14SALG02,HYR14SALG03,HYR14SALG04,HYR14SALG05,HYR14SALG12,HYR14SALG13,
HYR14SALW00,HYR14SALW01,HYR14SALW02,HYR14SALW03,HYR14SALW04,HYR14SALW05,HYR14SALW12,HYR14SALW13,
HYR14SBGG00,HYR14SBGG01,HYR14SBGG02,HYR14SBGG03,HYR14SBGG04,HYR14SBGG05,HYR14SBGG12,HYR14SBGG13,
HYR14SBGW00,HYR14SBGW01,HYR14SBGW02,HYR14SBGW03,HYR14SBGW04,HYR14SBGW05,HYR14SBGW12,HYR14SBGW13,
HYR14SBHG00,HYR14SBHG01,HYR14SBHG02,HYR14SBHG03,HYR14SBHG04,HYR14SBHG05,HYR14SBHG12,HYR14SBHG13,
HYR14SBHW00,HYR14SBHW01,HYR14SBHW02,HYR14SBHW03,HYR14SBHW04,HYR14SBHW05,HYR14SBHW12,HYR14SBHW13,
HYR14SBKG00,HYR14SBKG01,HYR14SBKG02,HYR14SBKG03,HYR14SBKG04,HYR14SBKG05,HYR14SBKG12,HYR14SBKG13,
HYR14SBKW00,HYR14SBKW01,HYR14SBKW02,HYR14SBKW03,HYR14SBKW04,HYR14SBKW05,HYR14SBKW12,HYR14SBKW13,
HYR14SBLG00,HYR14SBLG01,HYR14SBLG02,HYR14SBLG03,HYR14SBLG04,HYR14SBLG05,HYR14SBLG12,HYR14SBLG13,
HYR14SBLW00,HYR14SBLW01,HYR14SBLW02,HYR14SBLW03,HYR14SBLW04,HYR14SBLW05,HYR14SBLW12,HYR14SBLW13,
