KSGP系列平面型快速接头
互换标准
思图其 VEP
应用
该系列可允许在高残压下进行连接和断开，主要应用在挖掘机，油田，钻机，井口驱动器，起重机等各种有在高残压下连接和断开需求的机械设备中。
特点
KSGP系列的的快换接头可以在高达300公斤的残压下进行连接断开。螺纹型设计消除渗碳硬化及之前存在的泄露问题。其中平面型阀芯有效的防止了灰尘和水等的进入，保持接头整洁，延长其使用寿命。
产品说明

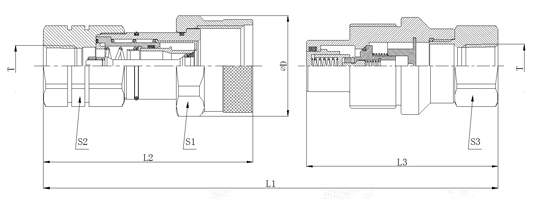

KSGP 规格-螺纹平面型
材质：碳钢为主体，镀锌镍
阀芯：平面阀芯
密封件：以NBR为标准，FKM,EPDM 和 VMQ以供选择
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。
| 昌林液压 |
国际标准 |
L1 |
L2 |
L3 |
?D |
S1 |
S2 |
S3 |
T |
母接头编号 |
公接头编号 |
| 04 |
6.3 |
|
75.0 |
|
38.8 |
36.0 |
27.0 |
22.0 |
1/4" BSP? |
KSGP-04F-BSP |
KSGP-04M-BSP |
| |
|
|
|
|
|
|
|
|
1/4" NPT |
KSGP-04F-NPT |
KSGP-04M-NPT |
| 06 |
10 |
|
88.5 |
|
41.8 |
38.0 |
30.0 |
27.0 |
3/8" BSP? |
KSGP-06F-BSP |
KSGP-06M-BSP |
| |
|
|
|
|
|
|
|
|
3/8" NPT? |
KSGP-06F-NPT |
KSGP-06M-NPT |
| 08 |
12.5 |
|
103.0 |
|
49.8 |
46.0 |
36.0 |
36.0 |
1/2" BSP |
KSGP-08F-BSP |
KSGP-08M-BSP |
| |
|
|
|
|
|
|
|
|
1/2" NPT |
KSGP-08F-NPT |
KSGP-08M-NPT |
| 12 |
20 |
|
114.0 |
|
53.8 |
50.0 |
41.0 |
36.0 |
3/4" BSP |
KSGP-12F-BSP |
KSGP-12M-BSP |
| |
|
|
|
|
|
|
|
|
3/4" NPT |
KSGP-12F-NPT |
KSGP-12M-NPT |
| 16 |
25 |
|
135.0 |
|
58.8 |
55.0 |
46.0 |
46.0 |
1" BSP |
KSGP-16F-BSP |
KSGP-16M-BSP |
| |
|
|
|
|
|
|
|
|
1" NPT |
KSGP-16F-NPT |
KSGP-16M-NPT |
| 20 |
31.5 |
|
141.0 |
|
69.8 |
65.0 |
55.0 |
55.0 |
1-1/4" BSP |
KSGP-20F-BSP |
KSGP-20M-BSP |
| |
|
|
|
|
|
|
|
|
1-1/4" NPT |
KSGP-20F-NPT |
KSGP-20M-NPT |
| 24 |
40 |
|
|
|
92.0 |
85.0 |
65.0 |
65.0 |
1-1/2" BSP |
KSGP-24F-BSP |
KSGP-24M-BSP |
| |
|
|
|
|
|
|
|
|
1-1/2" NPT? |
KSGP-24F-NPT |
KSGP-24M-NPT |
| 32 |
50 |
|
|
|
200.0 |
|
90.0 |
90.0 |
2" BSP |
KSGP-32F-BSP |
KSGP-32M-BSP |
| |
|
|
|
|
|
|
|
|
2" NPT? |
KSGP-32F-NPT |
KSGP-32M-NPT |
| 公称通径 |
最大工作压力 |
额定流量 |
最小爆破压力 |
泄漏量 |
| 公接头 |
母接头 |
连接 |
| LPH |
ISO |
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
| 04 |
6.3 |
600 |
12 |
1500 |
1260 |
1500 |
0.0008 |
| 06 |
10 |
550 |
23 |
1400 |
1000 |
1400 |
0.010 |
| 08 |
12.5 |
550 |
45 |
1400 |
1000 |
1400 |
0.012 |
| 12 |
20 |
550 |
76 |
1400 |
1000 |
1400 |
0.015 |
| 16 |
25 |
500 |
100 |
1250 |
1000 |
1250 |
0.020 |
| 20 |
31.5 |
470 |
189 |
1200 |
800 |
1200 |
0.030 |
| 24 |
40 |
400 |
379 |
1100 |
800 |
1100 |
0.050 |
| 32 |
50 |
350 |
758 |
1100 |
800 |
1100 |
0.100 |
保护帽和保护塞
| 液压液压 |
国际标准 |
母接头保护塞 |
公接头保护帽 |
颜色 |
材质 |
| 04 |
6.3 |
KSGP-04F-Al |
KSGP-04M-Al |
灰色 |
铝 |
| 06 |
10 |
KSGP-06F-Al |
KSGP-06M-Al |
灰色 |
铝 |
| 08 |
12.5 |
KSGP-08F-Al |
KSGP-08M-Al |
灰色 |
铝 |
| 12 |
20 |
KSGP-12F-Al |
KSGP-12M-Al |
灰色 |
铝 |
| 16 |
25 |
KSGP-16F-Al |
KSGP-16M-Al |
灰色 |
铝 |
| 20 |
31.5 |
KSGP-20F-Al |
KSGP-20M-Al |
灰色 |
铝 |
| 24 |
40 |
KSGP-24F-Al |
KSGP-24M-Al |
灰色 |
铝 |
| 32 |
50 |
KSGP-32F-Al |
KSGP-32M-Al |
灰色 |
铝 |
