KSG3-04-04F-BSP,KSG3-04-04M-NPT,KSG3-06-04F-BSP,KSG3-08-06M-BSP,螺纹型快速接头
2015-06-13 12:50714
信息概况
  • 价格：未填
  • 型号：KSG3-04-04F-BSP,KSG3-04-04M-NPT,KSG3-06-04F-BSP,KSG3-08-06M-BSP,
  • 发货：3天内
发送询价
 KSG3-04-04F-BSP,KSG3-04-04M-NPT,KSG3-06-04F-BSP,KSG3-08-06M-BSP,螺纹型快速接头

产品说明
KSG3 规格-螺纹型
材质：碳钢，表面镀环保锌
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。

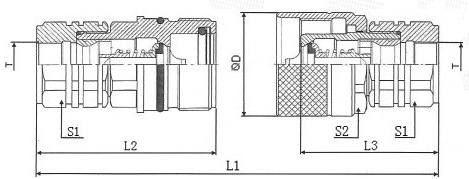

昌林液压 国际标准 L1 L2 L3 ØD S1 S2 T 母接头编号 公接头编号
04 6.3 93.0 59.0 58.0 35.0 19.0 30.0 1/4" BSP  KSG3-04-04F-BSP KSG3-04-04M-BSP
                1/4" NPT  KSG3-04-04F-NPT KSG3-04-04M-NPT
06 10 102.4 65.4 49.0 35.0 24.0 30.0 1/4" BSP  KSG3-06-04F-BSP KSG3-06-04M-BSP
                1/4" NPT  KSG3-06-04F-NPT KSG3-06-04M-NPT
                3/8" BSP  KSG3-06-06F-BSP KSG3-06-06M-BSP
                3/8" NPT  KSG3-06-06F-NPT KSG3-06-06M-NPT
                9/16" UNF KSG3-06F-UNF916 KSG3-06M-UNF916
                M16×1.5 KSG3-06F-M1615 KSG3-06M-M1615
                M18×1.5 KSG3-06F-M1815 KSG3-06M-M1815
08 12.5 102.0 67.0 51.0 42.0 30.0 36.0 3/8" BSP  KSG3-08-06F-BSP KSG3-08-06M-BSP
                3/8" NPT  KSG3-08-06F-NPT KSG3-08-06M-NPT
    105.5 68.0 54.0       1/2" BSP  KSG3-08-08F-BSP KSG3-08-08M-BSP
                1/2" NPT  KSG3-08-08F-NPT KSG3-08-08M-NPT
    102.0 67.0 51.0       M16×1.5 KSG3-08F-M1615 KSG3-08M-M1615
                M18×1.5 KSG3-08F-M1815 KSG3-08M-M1815
    108.0 70.0 54.0       M22×1.5 KSG3-08F-M2215 KSG3-08M-M2215
12 20 128.0 85.0 65.0 48.0 36.0 41.0 1/2" BSP  KSG3-12-08F-BSP KSG3-12-08M-BSP
                1/2" NPT  KSG3-12-08F-NPT KSG3-12-08M-NPT
    133.0 86.0 68.0       3/4" BSP  KSG3-12-12F-BSP KSG3-12-12M-BSP
                3/4" NPT  KSG3-12-12F-NPT KSG3-12-12M-NPT
    128.0 85.0 65.0       M18×1.5 KSG3-12F-M1815 KSG3-12M-M1815
                M22×1.5 KSG3-12F-M2215 KSG3-12M-M2215
    133.0 86.0 68.0       M26×1.5 KSG3-12F-M2615 KSG3-12M-M2615
16 25 148.0 95.0 80.0 55.0 41.0 50.0 3/4" BSP  KSG3-16-12F-BSP KSG3-16-12M-BSP
                3/4" NPT  KSG3-16-12F-NPT KSG3-16-12M-NPT
    153.0 100.5 77.0       1" BSP  KSG3-16-16F-BSP KSG3-16-16M-BSP
                1" NPT  KSG3-16-16F-NPT KSG3-16-16M-NPT
                M30×2.0 KSG3-16F-M3020 KSG3-16M-M3020
20 31.5 210 126 131 80 55 75 1-1/4" BSP KSG3-20-20F-BSP KSG3-20-20M-BSP
    214 128 133 80 55 75 1-1/2" BSP KSG3-20-24F-BSP KSG3-20-24M-BSP
KSG3 技术参数
公称通径 最大工作压力 额定流量 最小爆破压力 泄漏量
公接头 母接头 连接
LPH ISO (bar) (l/m) (bar) (bar) (bar) (cc)
04 6.3 350 12 1400 1400 1400 0.8
06 10 325 23 1300 1530 1830 1.4
08 12.5 300 45 1220 1510 1490 2.7
12 20 250 106 1070 1390 1490 9.3
16 25 250 189 1110 1110 1100 16
20 31.5 200 288 700 700 700 30
保护帽和保护塞
昌林液压 国际标准 母接头保护塞编号 公接头保护帽编号 材质
04 6.3 KSG3-04F-Al KSG3-04M-Al 铝
06 10 KSG3-06F-Al KSG3-06M-Al 铝
08 12.5 KSG3-08F-Al KSG3-08M-Al 铝
12 20 KSG3-12F-Al KSG3-12M-Al 铝
16 25 KSG3-16F-Al KSG3-16M-Al 铝
20 31.5 KSG3-20F-Al KSG3-20M-Al 铝
KSG3-04-04F-NPT,KSG3-06-04F-NPT,KSG3-06-06F-BSP,KSG3-06-06F-NPT,KSG3-06F-UNF916,
KSG3-06F-M1615,KSG3-06F-M1815,KSG3-08-06F-BSP,KSG3-08-06F-NPT,KSG3-08-08F-BSP,
KSG3-08-08F-NPT,KSG3-08F-M1615,KSG3-08F-M1815,KSG3-08F-M2215,KSG3-12-08F-BSP,
KSG3-12-08F-NPT,KSG3-12-12F-BSP,KSG3-12-12F-NPT,KSG3-12F-M1815,KSG3-12F-M2215,
KSG3-12F-M2615,KSG3-16-12F-BSP,KSG3-16-12F-NPT,KSG3-16-16F-BSP,KSG3-16-16F-NPT,
KSG3-16F-M3020,KSG3-20-20F-BSP,CCLAIR,KSG3-20-24F-BSP,
KSG3-04-04M-BSP,KSG3-06-04M-BSP,KSG3-06-04M-NPT,KSG3-06-06M-BSP,KSG3-06-06M-NPT,
KSG3-06M-UNF916,KSG3-06M-M1615,KSG3-06M-M1815,KSG3-08-06M-NPT,KSG3-08-08M-BSP,
KSG3-08-08M-NPT,KSG3-08M-M1615,KSG3-08M-M1815,KSG3-08M-M2215,KSG3-12-08M-BSP,
KSG3-12-08M-NPT,KSG3-12-12M-BSP,KSG3-12-12M-NPT,KSG3-12M-M1815,KSG3-12M-M2215,
KSG3-12M-M2615,KSG3-16-12M-BSP,KSG3-16-12M-NPT,KSG3-16-16M-BSP,KSG3-16-16M-NPT,
KSG3-16M-M3020,KSG3-20-20M-BSP,KSG3-20-24M-BSP,
