 KSG3-BK-04F-M1415L,KSG3-BK-06M-M1215L,KSG3-BK-08F-M2215L,螺纹型快速接头

KSG3-BK 规格 - 轻系列/重系列
材质：碳钢，表面镀环保锌
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。

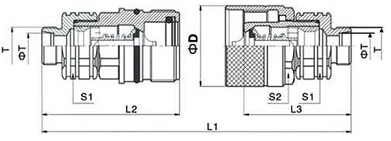

昌林液压 国际标准 L1 L2 L3 ØD S1 S2 ØT T 母接头编号 公接头编号
04 6.3 93.0 59.0 58.0 35.0 19.0 30.0 08L M14×1.5 KSG3-BK-04F-M1415L KSG3-BK-04M-M1415L
06 10 95.0 63.0 46.0 35.0 24.0 30.0 06L M12×1.5 KSG3-BK-06F-M1215L KSG3-BK-06M-M1215L
                08L M14×1.5 KSG3-BK-06F-M1415L KSG3-BK-06M-M1415L
                10L M16×1.5 KSG3-BK-06F-M1615L KSG3-BK-06M-M1615L
                12L M18×1.5 KSG3-BK-06F-M1815L KSG3-BK-06M-M1815L
08 12.5 98.0 66.0 50.0 42.0 30.0 36.0 08L M14×1.5 KSG3-BK-08F-M1415L KSG3-BK-08M-M1415L
                10L M16×1.5 KSG3-BK-08F-M1615L KSG3-BK-08M-M1615L
    102.0 69.0 54.0 42.0 30.0 36.0 12L M18×1.5 KSG3-BK-08F-M1815L KSG3-BK-08M-M1815L
                15L M22×1.5 KSG3-BK-08F-M2215L KSG3-BK-08M-M2215L
                18L M26×1.5 KSG3-BK-08F-M2615L KSG3-BK-08M-M2615L
12 20 124.0 81.0 61.0 48.0 36.0 41.0 12L M18×1.5 KSG3-BK-12F-M1815L KSG3-BK-12M-M1815L
                15L M22×1.5 KSG3-BK-12F-M2215L KSG3-BK-12M-M2215L
    129.0 84.0 64.0 48.0 36.0 41.0 18L M26×1.5 KSG3-BK-12F-M2615L KSG3-BK-12M-M2615L
                22L M30×2.0 KSG3-BK-12F-M3020L KSG3-BK-12M-M3020L
16 25 140.0 96.0 80.0 55.0 42.0 50.0 18L M26×1.5 KSG3-BK-16F-M2615L KSG3-BK-16M-M2615L
                22L M30×2.0 KSG3-BK-16F-M3020L KSG3-BK-16M-M3020L
    145.0 98.0 83.0 55.0 42.0 50.0 28L M36×2.0 KSG3-BK-16F-M3620L KSG3-BK-16M-M3620L
    145.0 98.0 83.0 55.0 46.0 50.0 35L M45×2.0 KSG3-BK-16F-M4520L KSG3-BK-16M-M4520L
06 10 98.0 64.0 48.0 35.0 24.0 30.0 08H M16×1.5 KSG3-BK-06F-M1615H KSG3-BK-06M-M1615H
                10H M18×1.5 KSG3-BK-06F-M1815H KSG3-BK-06M-M1815H
                12H M20×1.5 KSG3-BK-06F-M2015H KSG3-BK-06M-M2015H
08 12.5 98.0 66.0 52.0 42.0 30.0 36.0 10H M18×1.5 KSG3-BK-08F-M1815H KSG3-BK-08M-M1815H
                12H M20×1.5 KSG3-BK-08F-M2015H KSG3-BK-08M-M2015H
    103.0 69.0 54.0 42.0 30.0 36.0 14H M22×1.5 KSG3-BK-08F-M2215H KSG3-BK-08M-M2215H
                16H M24×1.5 KSG3-BK-08F-M2415H KSG3-BK-08M-M2415H
    108.0 72.0 56.0 42.0 30.0 36.0 20H M30×2.0 KSG3-BK-08F-M3020H KSG3-BK-08M-M3020H
12 20 125.0 82.0 63.0 48.0 36.0 41.0 10H M18×1.5 KSG3-BK-12F-M1815H KSG3-BK-12M-M1815H
                12H M20×1.5 KSG3-BK-12F-M2015H KSG3-BK-12M-M2015H
    128.0 83.0 65.0 48.0 36.0 41.0 14H M22×1.5 KSG3-BK-12F-M2215H KSG3-BK-12M-M2215H
                16H M24×1.5 KSG3-BK-12F-M2415H KSG3-BK-12M-M2415H
    132.0 85.0 67.0 48.0 36.0 41.0 20H M30×2.0 KSG3-BK-12F-M3020H KSG3-BK-12M-M3020H
16 25 147.0 95.0 77.0 55.0 42.0 50.0 20H M30×2.0 KSG3-BK-16F-M3020H KSG3-BK-16M-M3020H
                25H M36×2.0 KSG3-BK-16F-M3620H KSG3-BK-16M-M3620H
    152.0 98.0 79.0 55.0 46.0 50.0 30H M42×2.0 KSG3-BK-16F-M4220H KSG3-BK-16M-M4220H
20 31.5 182.0 111.0 130.0 80.0 55.0 75.0 30H M42×2.0 KSG3-BK-20F-M4220H KSG3-BK-20M-M4220H
    186.0 113.0 132.0 80.0 55.0 75.0 38H M52×2.0 KSG3-BK-20F-M5220H KSG3-BK-20M-M5220H
KSG3-BK 技术参数
公称通径 最大工作压力 额定流量 最小爆破压力 泄漏量
公接头 母接头 连接
LPH ISO (bar) (l/m) (bar) (bar) (bar) (cc)
04 6.3 350 12 1400 1400 1400 0.8
06 10 325 23 1300 1530 1830 1.4
08 12.5 300 45 1220 1510 1490 2.7
12 20 250 106 1070 1390 1490 9.3
16 25 250 189 1110 1110 1100 16
20 31.5 200 288 700 700 700 30
保护帽和保护塞
昌林液压 国际标准 母接头保护塞 公接头保护帽 材质
04 6.3 KSG3-04F-Al KSG3-04M-Al 铝
06 10 KSG3-06F-Al KSG3-06M-Al 铝
08 12.5 KSG3-08F-Al KSG3-08M-Al 铝
12 20 KSG3-12F-Al KSG3-12M-Al 铝
16 25 KSG3-16F-Al KSG3-16M-Al 铝
20 31.5 KSG3-20F-Al KSG3-20M-Al 铝
KSG3-BK-06F-M1215L,KSG3-BK-06F-M1415L,KSG3-BK-06F-M1615L,KSG3-BK-06F-M1815L,
KSG3-BK-08F-M1415L,KSG3-BK-08F-M1615L,KSG3-BK-08F-M1815L,KSG3-BK-08F-M2615L,
KSG3-BK-12F-M1815L,KSG3-BK-12F-M2215,KSG3-BK-12F-M2615L,KSG3-BK-12F-M3020L,
KSG3-BK-16F-M2615L,KSG3-BK-16F-M3020L,KSG3-BK-16F-M3620L,KSG3-BK-16F-M4520L,
KSG3-BK-06F-M1615H,KSG3-BK-06F-M1815H,KSG3-BK-06F-M2015H,KSG3-BK-08F-M1815H,
KSG3-BK-08F-M2015H,KSG3-BK-08F-M2215H,KSG3-BK-08F-M2415H,KSG3-BK-08F-M3020H,
KSG3-BK-12F-M1815H,KSG3-BK-12F-M2015H,KSG3-BK-12F-M2215H,KSG3-BK-12F-M2415H,
KSG3-BK-12F-M3020H,KSG3-BK-16F-M3020H,KSG3-BK-16F-M3620H,KSG3-BK-16F-M4220H,
KSG3-BK-20F-M4220H,CCLAIR,KSG3-BK-20F-M5220H,
KSG3-BK-04M-M1415L,KSG3-BK-06M-M1415L,KSG3-BK-06M-M1615L,KSG3-BK-06M-M1815L,
KSG3-BK-08M-M1415L,KSG3-BK-08M-M1615L,KSG3-BK-08M-M1815L,KSG3-BK-08M-M2215L,
KSG3-BK-08M-M2615L,KSG3-BK-12M-M1815L,KSG3-BK-12M-M2215,KSG3-BK-12M-M2615L,
KSG3-BK-12M-M3020L,KSG3-BK-16M-M2615L,KSG3-BK-16M-M3020L,KSG3-BK-16M-M3620L,
KSG3-BK-16M-M4520L,KSG3-BK-06M-M1615H,KSG3-BK-06M-M1815H,KSG3-BK-06M-M2015H,
KSG3-BK-08M-M1815H,KSG3-BK-08M-M2015H,KSG3-BK-08M-M2215H,KSG3-BK-08M-M2415H,
KSG3-BK-08M-M3020H,KSG3-BK-12M-M1815H,KSG3-BK-12M-M2015H,KSG3-BK-12M-M2215H,
KSG3-BK-12M-M2415H,KSG3-BK-12M-M3020H,KSG3-BK-16M-M3020H,KSG3-BK-16M-M3620H,
KSG3-BK-16M-M4220H,KSG3-BK-20M-M4220H,KSG3-BK-20M-M5220H,
