WTF-M12,WTF-M16,WTF-M20,WTF-M40,WTF-M50,WTF-M63,WTF-PG11,WTF-PG21,WTF-PF1/2,防水型波纹管（浪管）接头
·螺牙规格: 公制牙(Metric)、PG牙、G牙、NPT牙。

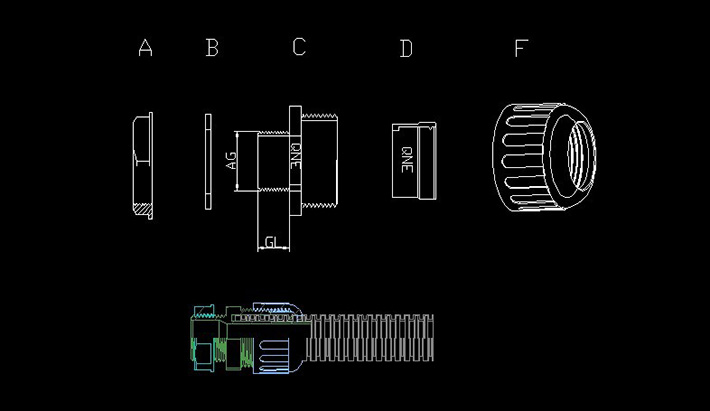

·产品材质: A.C.F部分采用UL认可之无卤素（Halogen-Free）尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
B.D部分采用三元乙丙(EPDM)耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
·保护等级: IP68
·工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
·产品特性: 本款高性能防水尼龙浪管盒接头能完美地抗水压，是一款即使拉扯波纹管也能完全保持气密的产品。产品广泛地应用于移动式的自动化设备之防水、防油与气密的场合。
·颜色种类: 黑色、灰色，其它颜色可定做。
防水型浪管接头（防水IP68，抗强拉力，材质环保）
| 适配软管 |
编号 |
螺牙规 |
螺纹外径 |
螺纹长度 |
| AD10.0 |
WTF-M12-10.0 |
M12 x 1.5 |
12 |
9 |
| WTF-M16-10.0-ST |
M16 x 1.5 |
16 |
10 |
| AD13.0 |
WTF-M16-13.0-ST |
M16 x 1.5 |
16 |
10 |
| WTF-M16-13.0 |
M16 x 1.5 |
16 |
15 |
| AD15.8 |
WTF-M16-15.8-ST |
M16 x 1.5 |
16 |
10 |
| WTF-M16-15.8 |
M16 x 1.5 |
16 |
15 |
| WTF-M20-15.8-ST |
M20 x 1.5 |
20 |
10 |
| WTF-M20-15.8 |
M20 x 1.5 |
20 |
15 |
| WTF-M22-15.8-ST |
M22 x 1.5 |
22 |
10 |
| WTF-M22-15.8 |
M22 x 1.5 |
22 |
15 |
| WTF-M25-15.8-ST |
M25 x 1.5 |
25 |
12 |
| AD18.5 |
WTF-M16-18.5-ST |
M16 x 1.5 |
16 |
10 |
| WTF-M16-18.5 |
M16 x 1.5 |
16 |
15 |
| WTF-M20-18.5-ST |
M20 x 1.5 |
20 |
10 |
| WTF-M20-18.5 |
M20 x 1.5 |
20 |
15 |
| WTF-M22-18.5-ST |
M22 x 1.5 |
22 |
10 |
| WTF-M22-18.5 |
M22 x 1.5 |
22 |
15 |
| WTF-M25-18.5-ST |
M25 x 1.5 |
25 |
12 |
| AD21.2 |
WTF-M20-21.2-ST |
M20 x 1.5 |
20 |
10 |
| WTF-M20-21.2 |
M20 x 1.5 |
20 |
15 |
| WTF-M25-21.2-ST |
M25 x 1.5 |
25 |
10 |
| WTF-M25-21.2 |
M25 x 1.5 |
25 |
15 |
| AD25.0 |
WTF-M25-25.0-ST |
M25 x 1.5 |
25 |
10 |
| WTF-M25-25.0 |
M25 x 1.5 |
25 |
15 |
| AD26.2 |
WTF-M25-26.2-ST |
M25 x 1.5 |
25 |
10 |
| |
|
|
|
|
| |
WTF-M25-26.2 |
M25 x 1.5 |
25 |
15 |
| |
|
|
|
|
| AD28.5 |
WTF-M25-28.5-ST |
M25 x 1.5 |
25 |
10 |
| |
WTF-M25-28.5 |
M25 x 1.5 |
25 |
15 |
| AD34.5 |
WTF-M32-34.5-ST |
M32 x 1.5 |
32 |
10 |
| WTF-M32-34.5 |
M32 x 1.5 |
32 |
15 |
| AD42.5 |
WTF-M40-42.5 |
M40 x 1.5 |
40 |
15 |
| |
WTF-M50-42.5 |
M50 x 1.5 |
50 |
15 |
| AD48 |
WTF-M50-48 |
M50 x 1.5 |
50 |
15 |
| AD54.5 |
WTF-M50-54.5 |
M50 x 1.5 |
50 |
22 |
| WTF-M63-54.5 |
M63 x 1.5 |
63 |
25 |
| AD10.0 |
WTF-PG7-10.0 |
PG7 |
12.5 |
9 |
| WTF-PG9-10.0 |
PG9 |
15.2 |
9 |
| AD13.0 |
WTF-PG11-13.0 |
PG11 |
18.6 |
10 |
| AD15.8 |
WTF-PG13.5-15.8 |
PG13.5 |
20.4 |
10 |
| WTF-PG16-15.8 |
PG16 |
22.5 |
10.8 |
| AD18.5 |
WTF-PG13.5-18.5 |
PG13.5 |
20.4 |
10 |
| WTF-PG16-18.5 |
PG16 |
22.5 |
10.8 |
| AD21.2 |
WTF-PG16-21.2 |
PG16 |
22.5 |
13 |
| WTF-PG21-21.2 |
PG21 |
28.3 |
13 |
| AD28.5 |
WTF-PG21-28.5 |
PG21 |
28.3 |
13 |
| AD34.5 |
WTF-PG29-34.5 |
PG29 |
37 |
13 |
| AD42.5 |
WTF-PG36-42.5 |
PG36 |
47 |
13 |
| AD54.5 |
WTF-PG48-54.5 |
PG48 |
59.3 |
16 |
| AD10.0 |
WTF-PF1/4-10.0 |
G(PF)1/4 |
13.1 |
9 |
| AD13.0 |
WTF-PF3/8-13.0 |
G(PF)3/8 |
16.6 |
15 |
| AD15.8 |
WTF-PF1/2-15.8 |
G(PF)1/2 |
20.9 |
15 |
| AD18.5 |
WTF-PF1/2-18.5 |
G(PF)1/2 |
20.9 |
15 |
| AD21.2 |
WTF-PF1/2-21.2 |
G(PF)1/2 |
20.9 |
15 |
| WTF-PF3/4-21.2 |
G(PF)3/4 |
26.4 |
15 |
| AD28.5 |
WTF-PF3/4-28.5 |
G(PF)3/4 |
26.4 |
15 |
| AD34.5 |
WTF-PF1-34.5 |
G(PF)1 |
33.2 |
15 |
| AD42.5 |
WTF-PF1 1/4-42.5 |
G(PF)1 1/4 |
41.9 |
15 |
| AD54.5 |
WTF-PF1 1/2-54.5 |
G(PF)1 1/2 |
48 |
15 |
| WTF-PF1 1/2-54.5 |
G(PF)2 |
60 |
15 |
