QTF-M12,QTF-M27,QTF-M30,QTF-M40,QTF-M50,QTF-M60,QTF-PG7,QTF-PG9,QTF-PG29,QTF-PG36,QTF-G1/2,快速接头
QTF-M12-10.0,QTF-M12-13.0,QTF-M16-13.0,QTF-M18-13.0,QTF-M16-15.8,QTF-M18-15.8,QTF-M20-15.8,
QTF-M20-18.5,QTF-M22-18.5,QTF-M20-21.2,QTF-M24-21.2,QTF-M25-21.2,QTF-M25-25.0,QTF-M25-28.5,
QTF-M27-28.5,QTF-M30-28.5,QTF-M32-28.5,QTF-M32-34.5,QTF-M36-34.5,QTF-M40-34.5,QTF-M40-42.5,
QTF-M48-42.5,QTF-M50-54.5,QTF-M60-54.5,QTF-PG7-10.0,QTF-PG9-13.0,QTF-PG11-15.8,QTF-PG13.5-18.5,
QTF-PG16-21.2,QTF-PG21-28.5,QTF-PG29-34.5,QTF-PG36-42.5,QTF-PG42-54.5,QTF-PG48-54.5,QTF-G1/4-10.0,
QTF-G3/8-13.0,QTF-G3/8-1.58,QTF-G1/2-1.58,QTF-G1/2-18.5,QTF-G1/2-21.2,QTF-G3/4-21.2,QTF-G3/4-25,
QTF-G3/4-28.5,QTF-G1-34.5,QTF-G1 1/4-42.5,QTF-G1 1/2-54.5,QTF-G2-54.5,
·螺牙规格:公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙（可定制）。
·产品材质:采用UL认可之尼龙PA66(防火等级UL94V-2)制成，(可定制）
·工作温度:静态-40℃至100℃，或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
·产品特性:特殊夹紧爪之设计，夹紧浪管抗拉力强，超快速拔插装卸，提高安装效率。
·颜色种类:黑色、灰色，其它颜色可定做。

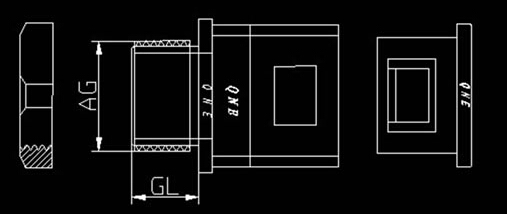

| 适配软管 |
编号 |
螺牙规格 |
螺纹外径 |
螺纹长度 |
| AD10.0 |
QTF-M12-10.0 |
M12 x 1.5 |
12 |
8.5 |
| AD13.0 |
QTF-M12-13.0 |
M12 x 1.5 |
12 |
10 |
| QTF-M16-13.0 |
M16 x 1.5 |
16 |
10 |
| QTF-M18-13.0 |
M18 x 1.5 |
18 |
10 |
| AD15.8 |
QTF-M16-15.8 |
M16 x 1.5 |
16 |
10 |
| QTF-M18-15.8 |
M18 x 1.5 |
18 |
12.5 |
| QTF-M20-15.8 |
M20 x 1.5 |
20 |
12.5 |
| AD18.5 |
QTF-M20-18.5 |
M20 x 1.5 |
20 |
12.5 |
| QTF-M22-18.5 |
M22 x 1.5 |
20 |
12.5 |
| AD21.2 |
QTF-M20-21.2 |
M20 x 1.5 |
20 |
13 |
| QTF-M24-21.2 |
M24 x 1.5 |
24 |
13 |
| QTF-M25-21.2 |
M25 x 1.5 |
25 |
13 |
| AD25.0 |
QTF-M25-25.0 |
M25 x 1.5 |
25 |
13 |
| AD28.5 |
QTF-M25-28.5 |
M25 x 1.5 |
25 |
13 |
| QTF-M27-28.5 |
M27 x 1.5 |
27 |
13 |
| QTF-M30-28.5 |
M30 x 1.5 |
30 |
13 |
| QTF-M32-28.5 |
M32 x 1.5 |
32 |
13 |
| AD34.5 |
QTF-M32-34.5 |
M32 x 1.5 |
32 |
14 |
| QTF-M36-34.5 |
M36 x 1.5 |
36 |
14 |
| QTF-M40-34.5 |
M40 x 1.5 |
40 |
14 |
| AD42.5 |
QTF-M40-42.5 |
M40 x 1.5 |
40 |
15 |
| QTF-M48-42.5 |
M48 x 1.5 |
48 |
15 |
| AD54.5 |
QTF-M50-54.5 |
M50 x 1.5 |
50 |
16 |
| QTF-M60-54.5 |
M60 x 2.0 |
60 |
16 |
| AD10.0 |
QTF-PG7-10.0 |
PG7 |
12.4 |
8.5 |
| AD13.0 |
QTF-PG9-13.0 |
PG9 |
15.2 |
10 |
| AD15.8 |
QTF-PG11-15.8 |
PG11 |
18.4 |
12.5 |
| AD18.5 |
QTF-PG13.5-18.5 |
PG13.5 |
20.4 |
12.5 |
| AD21.2 |
QTF-PG16-21.2 |
PG16 |
22.5 |
13 |
| AD28.5 |
QTF-PG21-28.5 |
PG21 |
28.3 |
13 |
| AD34.5 |
QTF-PG29-34.5 |
PG29 |
37 |
14 |
| AD42.5 |
QTF-PG36-42.5 |
PG36 |
47 |
15 |
| AD54.5 |
QTF-PG42-54.5 |
PG42 |
54 |
16 |
| QTF-PG48-54.5 |
PG48 |
59.3 |
16 |
| AD10.0 |
QTF-G1/4-10.0 |
G(PF) 1/4 |
13.1 |
8.5 |
| AD13.0 |
QTF-G3/8-13.0 |
G(PF) 3/8 |
16.6 |
10 |
| AD1.58 |
QTF-G3/8-1.58 |
G(PF) 3/8 |
16.6 |
12.5 |
| QTF-G1/2-1.58 |
G(PF) 1/2 |
20.9 |
12.5 |
| AD18.5 |
QTF-G1/2-18.5 |
G(PF) 1/2 |
20.9 |
12.5 |
| AD21.2 |
QTF-G1/2-21.2 |
G(PF) 1/2 |
20.9 |
13 |
| QTF-G3/4-21.2 |
G(PF) 3/4 |
26.4 |
13 |
| AD25.0 |
QTF-G3/4-25 |
G(PF) 3/4 |
26.4 |
13 |
| AD28.5 |
QTF-G3/4-28.5 |
G(PF) 3/4 |
26.4 |
13 |
| AD34.5 |
QTF-G1-34.5 |
G(PF) 1 |
33.2 |
14 |
| AD42.5 |
QTF-G1 1/4-42.5 |
G(PF) 1 1/4 |
41.9 |
15 |
| AD54.5 |
QTF-G1 1/2-54.5 |
G(PF) 1 1/2 |
48 |
16 |
| QTF-G2-54.5 |
G(PF) 2 |
60 |
16 |
