STF-M12,STF-M20,STF-M32,STF-M40,STF-M50,STF-M63,STF-PG29,STF-PG11,STF-PF1/2,高拉力波纹管（浪管）接头
STF-M12-10.0,STF-M16-10.0-ST,STF-M16-13.0-ST,STF-M16-13.0,STF-M16-15.8-ST,STF-M16-15.8,
STF-M20-15.8-ST,STF-M20-15.8,STF-M22-15.8-ST,STF-M22-15.8,STF-M25-15.8-ST,STF-M16-18.5-ST,
STF-M16-18.5,STF-M20-18.5-ST,STF-M20-18.5,STF-M22-18.5-ST,STF-M22-18.5,STF-M25-18.5-ST,
STF-M20-21.2-ST,STF-M20-21.2,STF-M25-21.2-ST,STF-M25-21.2,STF-M25-25.0-ST,STF-M25-25.0,
STF-M25-26.2-ST,STF-M25-26.2,STF-M25-28.5-ST,STF-M25-28.5,STF-M32-34.5-ST,STF-M32-34.5,
STF-M40-42.5,STF-M50-42.5,STF-M50-48,STF-M50-54.5,STF-M63-54.5,STF-PG7-10.0,STF-PG9-10.0,
STF-PG11-13.0,STF-PG13.5-15.8,STF-PG16-15.8,STF-PG13.5-18.5,STF-PG16-18.5,STF-PG16-21.2,
STF-PG21-21.2,STF-PG21-26.2,STF-PG21-28.5,STF-PG29-34.5,STF-PG36-42.5,STF-PG42-48,STF-PG48-54.5,
STF-1/4-10.0,STF-PF3/8-13.0,STF-PF1/2-15.8,STF-PF1/2-18.5,STF-PF1/2-21.2,STF-PF3/4-21.2,
STF-PF3/4-26.2,STF-PF3/4-28.5,STF-PF1-34.5,STF-PF1 1/4-42.5,STF-PF1 1/2-54.5,STF-PF2-54.5,
·螺牙规格: 公制牙(Metric)、PG牙、G（PF）牙、NPT牙。

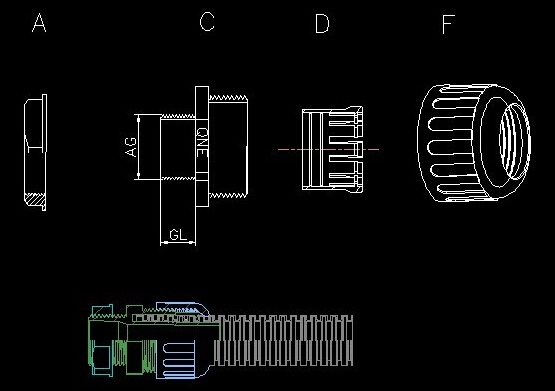

·产品材质: A.C.D.F部分采用UL认可之无卤素（Halogen-Free）尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
·保护等级: IP68
·工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
·产品特性: 本款高性能抗拉型浪管接头，适合不同材质，不同硬度浪管
·颜色种类: 黑色、灰色，其它颜色可定做。
| 适配软管 |
编号 |
螺牙规格 |
螺纹外径(mm) |
螺纹长度(mm) |
| AD10.0 |
STF-M12-10.0 |
M12 x 1.5 |
12 |
9 |
| STF-M16-10.0-ST |
M16 x 1.5 |
16 |
10 |
| AD13.0 |
STF-M16-13.0-ST |
M16 x 1.5 |
16 |
10 |
| STF-M16-13.0 |
M16 x 1.5 |
16 |
15 |
| AD15.8 |
STF-M16-15.8-ST |
M16 x 1.5 |
16 |
10 |
| STF-M16-15.8 |
M16 x 1.5 |
16 |
15 |
| STF-M20-15.8-ST |
M20 x 1.5 |
20 |
10 |
| STF-M20-15.8 |
M20 x 1.5 |
20 |
15 |
| STF-M22-15.8-ST |
M22 x 1.5 |
22 |
10 |
| STF-M22-15.8 |
M22 x 1.5 |
22 |
15 |
| STF-M25-15.8-ST |
M25 x 1.5 |
25 |
12 |
| AD18.5 |
STF-M16-18.5-ST |
M16 x 1.5 |
16 |
10 |
| STF-M16-18.5 |
M16 x 1.5 |
16 |
15 |
| STF-M20-18.5-ST |
M20 x 1.5 |
20 |
10 |
| STF-M20-18.5 |
M20 x 1.5 |
20 |
15 |
| STF-M22-18.5-ST |
M22 x 1.5 |
22 |
10 |
| STF-M22-18.5 |
M22 x 1.5 |
22 |
15 |
| STF-M25-18.5-ST |
M25 x 1.5 |
25 |
12 |
| AD21.2 |
STF-M20-21.2-ST |
M20 x 1.5 |
20 |
10 |
| STF-M20-21.2 |
M20 x 1.5 |
20 |
15 |
| STF-M25-21.2-ST |
M25 x 1.5 |
25 |
10 |
| STF-M25-21.2 |
M25 x 1.5 |
25 |
15 |
| AD25.0 |
STF-M25-25.0-ST |
M25 x 1.5 |
25 |
10 |
| STF-M25-25.0 |
M25 x 1.5 |
25 |
15 |
| AD26.2 |
STF-M25-26.2-ST |
M25 x 1.5 |
25 |
10 |
| STF-M25-26.2 |
M25 x 1.5 |
25 |
15 |
| AD28.5 |
STF-M25-28.5-ST |
M25 x 1.5 |
25 |
10 |
| STF-M25-28.5 |
M25 x 1.5 |
25 |
15 |
| AD34.5 |
STF-M32-34.5-ST |
M32 x 1.5 |
32 |
10 |
| STF-M32-34.5 |
M32 x 1.5 |
32 |
15 |
| AD42.5 |
STF-M40-42.5 |
M40 x 1.5 |
40 |
15 |
| STF-M50-42.5 |
M50 x 1.5 |
40 |
15 |
| AD48 |
STF-M50-48 |
M50 x 1.5 |
50 |
22 |
| AD54.5 |
STF-M50-54.5 |
M50 x 1.5 |
50 |
22 |
| STF-M63-54.5 |
M63 x 1.5 |
63 |
25 |
| AD10.0 |
STF-PG7-10.0 |
PG7 |
12.5 |
9 |
| STF-PG9-10.0 |
PG9 |
15.2 |
9 |
| AD13.0 |
STF-PG11-13.0 |
PG11 |
18.6 |
10 |
| AD15.8 |
STF-PG13.5-15.8 |
PG13.5 |
20.4 |
10 |
| STF-PG16-15.8 |
PG16 |
22.5 |
10.8 |
| AD18.5 |
STF-PG13.5-18.5 |
PG13.5 |
20.4 |
10 |
| STF-PG16-18.5 |
PG16 |
22.5 |
10.8 |
| AD21.2 |
STF-PG16-21.2 |
PG16 |
22.5 |
13 |
| STF-PG21-21.2 |
PG21 |
28.3 |
13 |
| AD26.2 |
STF-PG21-26.2 |
PG21 |
28.3 |
13 |
| AD28.5 |
STF-PG21-28.5 |
PG21 |
28.3 |
13 |
| AD34.5 |
STF-PG29-34.5 |
PG29 |
37 |
13 |
| AD42.5 |
STF-PG36-42.5 |
PG36 |
47 |
13 |
| AD48 |
STF-PG42-48 |
PG42 |
59.3 |
16 |
| AD54.5 |
STF-PG48-54.5 |
PG48 |
59.3 |
16 |
| AD10.0 |
STF-1/4-10.0 |
PF 1/4” |
13.1 |
9 |
| AD13.0 |
STF-PF3/8-13.0 |
PF 3/8” |
16.6 |
15 |
| AD15.8 |
STF-PF1/2-15.8 |
PF 1/2” |
20.9 |
15 |
| AD18.5 |
STF-PF1/2-18.5 |
PF 1/2” |
20.9 |
15 |
| AD21.2 |
STF-PF1/2-21.2 |
PF 1/2” |
20.9 |
15 |
| STF-PF3/4-21.2 |
PF 3/4” |
26.4 |
15 |
| AD26.2 |
STF-PF3/4-26.2 |
PF 3/4” |
26.4 |
15 |
| AD28.5 |
STF-PF3/4-28.5 |
PF 3/4” |
26.4 |
15 |
| AD34.5 |
STF-PF1-34.5 |
PF 1” |
33.2 |
15 |
| AD42.5 |
STF-PF1 1/4-42.5 |
PF1 1/4” |
41.9 |
15 |
| AD54.5 |
STF-PF1 1/2-54.5 |
PF1 1/2” |
48 |
15 |
| STF-PF2-54.5 |
PF 2” |
60 |
15
|
