ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油气分配混合器
2015-04-26 19:47549
信息概况
  • 价格：未填
  • 型号： ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10
  • 发货：3天内
发送询价
 ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油气分配混合器
一、结构特点及应用范围
　　ZRAVE型油气分配混合器，它是一种由铝合金材料制造的容积定量式结构的油气分配混合器，设有一个进油口、一个进气口、1～8个油气出口。主要适用于单线卸压式油气润滑系统中。
二、技术参数
型 号
进油压力
进气压力
油气出口数
L
H
ZRAVE1-*
＞2MPa
0.4～0.6MPa
1
44
30
ZRAVE2-*
2
64
50
ZRAVE3-*
3
84
70
ZRAVE4-*
4
104
90
ZRAVE5-*
5
124
110
ZRAVE6-*
6
144
130
ZRAVE7-*
7
164
150
ZRAVE8-*
8
184
170
给油系列号＊
排 量
10
0.1ml/cycle
20
0.2ml/cycle
30
0.3ml/cycle
40
0.4ml/cycle
　　适用过滤精度25m，粘度≤760cSt/40℃的润滑油；环境温度0℃～40℃。

四、动作说明

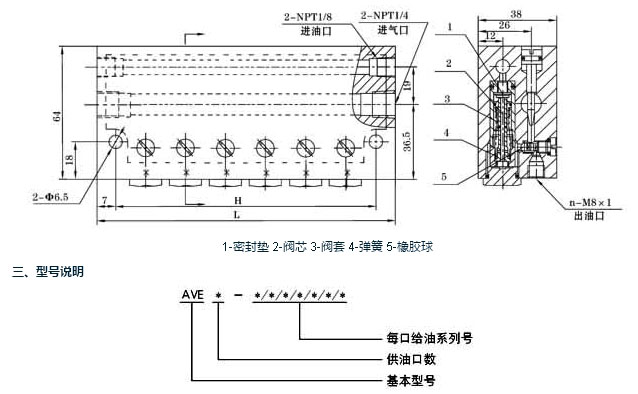

从进油口处进入的压力油，在油压的作用下件1下移，紧贴在件2上端面封住了通油通道，同时打开了进油通道向件3上腔充油，件3在油压作用下克服件4弹簧力向下移动，则件3下腔的油顶开件5进入混合腔，在压缩空气的作用下经混合后的油气从油气出口排出。供油主管卸荷后，件1上部油压低并且件3在件4的作用下向上回位，件3上腔充入的油经已打开的件2上端面流道孔进入件3下腔储存，为下一循环供油作好准备。各口的供气量可通过节流螺丝的开口大小进行调节。
五、使用要领
1、必须在规定的环境下使用规定范围的介质。
2、压缩空气接口必须与本油气系统专属的压缩空气网络管路连接，严禁与其它来历不明的气源管路连接，以免发生意外。
3、油气分配混合器的安装位置优先考虑安装在工况条件好，温差弯化小，无腐蚀性介质影响的部位，决不允许安装在长时间受高温辐射烘烤的场合使用。
